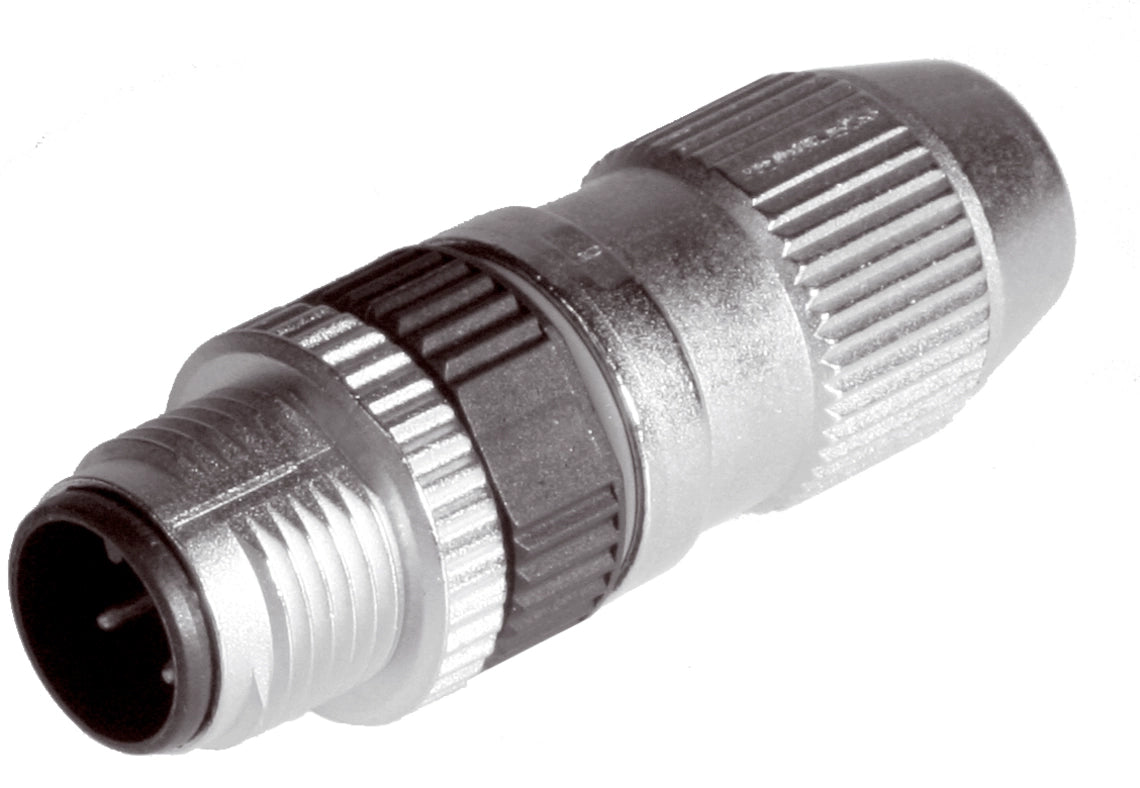

DI-Soric MS-Z-12/4, Connection technology, sku: 201120

Field-attachable plug connectors have a high protection class and are available in different designs. They are useful accessory parts for connecting sensors to previously existing connection cables that are mechanically incompatible.

• Metal/plastic housing
• Turnable metal thread
• Quick mounting without tools
• 4-pin
• High protection type

Service voltage	32 V DC
Housing material	Metal / Plastic
For Ø cable	4.0 … 5.1 mm
For Ø wire	1.0 … 1.6 mm (Wire must not be stripped!)
For strand cross-section	0.25 … 0.50 mm²
Design	straight
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 67
Sensor-side connection	Connector, M12 x 1, 4-pin
Control-side connection	Field-wireable, Insulation displacement connectors
