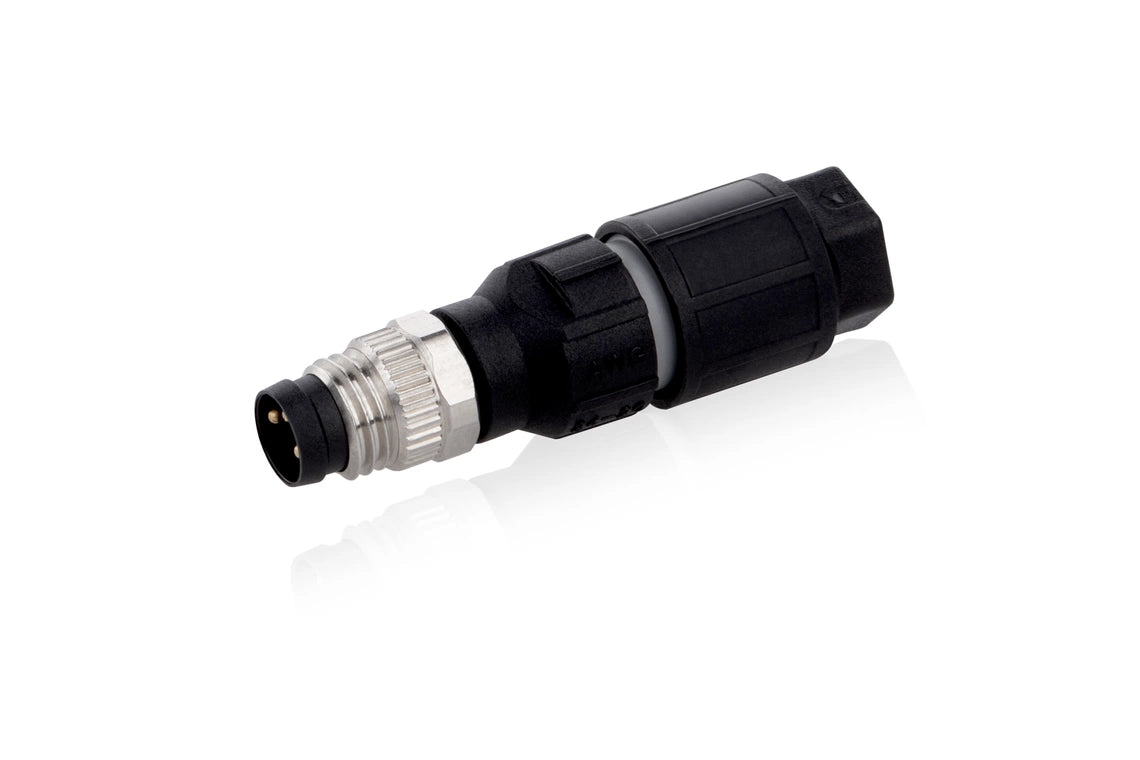

DI-Soric MS-Z-8/4 Connection technology

Field-attachable plug connectors have a high protection class and are available in different designs. They are useful accessory parts for connecting sensors to previously existing connection cables that are mechanically incompatible.

• Metal/plastic housing
• Turnable metal thread
• Quick mounting without tools
• 4-pin
• High protection type of up to IP 67

Service voltage	30 V DC
Housing material	Metal / Plastic
For Ø cable	2.5 … 5.0 mm
For Ø wire	1.1 … 1.55 mm (Wire must not be stripped!)
For strand cross-section	0.25 … 0.50 mm²
Design	straight
Ambient temperature during operation	-25 … +80 °C
Protection type	IP 67
Sensor-side connection	Connector, M8 x 1, 4-pin
Control-side connection	Field-wireable, Insulation displacement connectors
