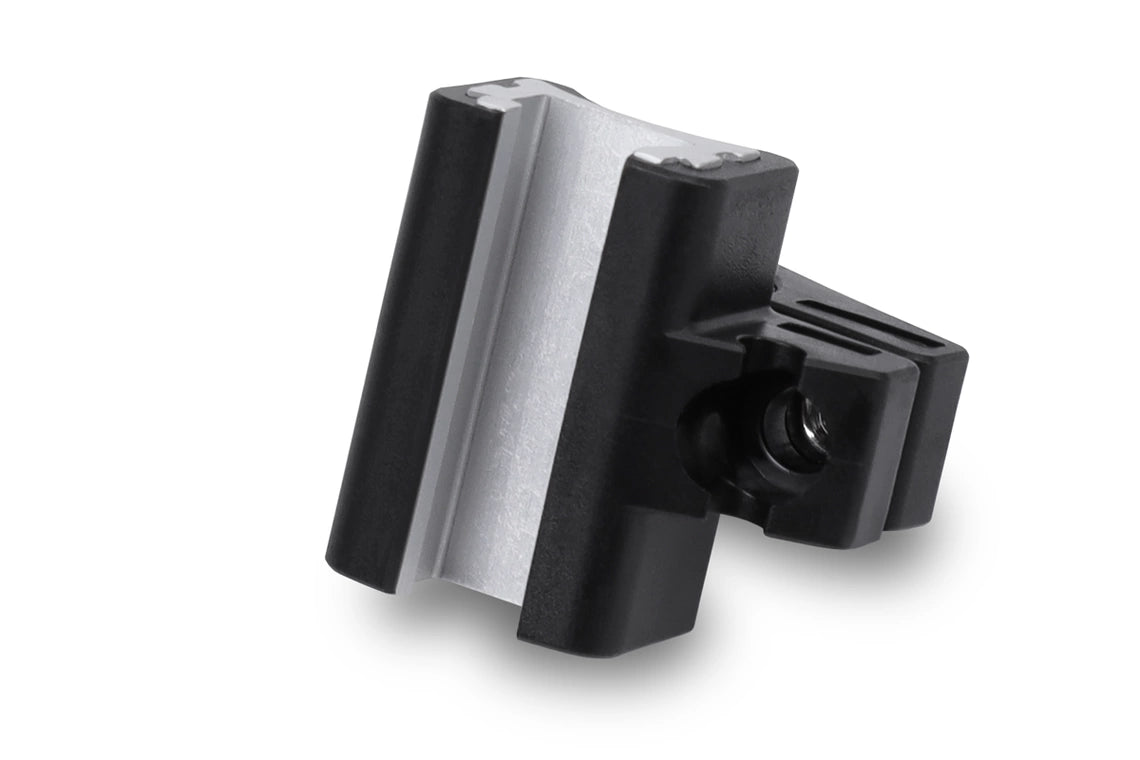

DI-Soric MZ-S-10/6.5, Sensor Accessories, sku: 202779

The MZE-Z series offers various fastening accessories, such as sensor clips and adapters which are matched specifically with our di-soric magnetic field sensors.

• Reliable mounting of cylinder sensors at round cylinders
• High locking power
• Robust housing
• For quick and easy mounting of sensors

Cylinder groove	T-groove
Assembly	at round cylinders
Distance dimension	B: 20.4 mm
Distance dimension	C: 13.7 mm
Distance dimension	D: 7 mm
Distance dimension	E: 19.9 mm
Housing material	Aluminum
Material	POM (Ring)
Component	Sensor clamp
To be used for	Ø 10 mm
Scope of delivery	Sensor holder, Fixing material
