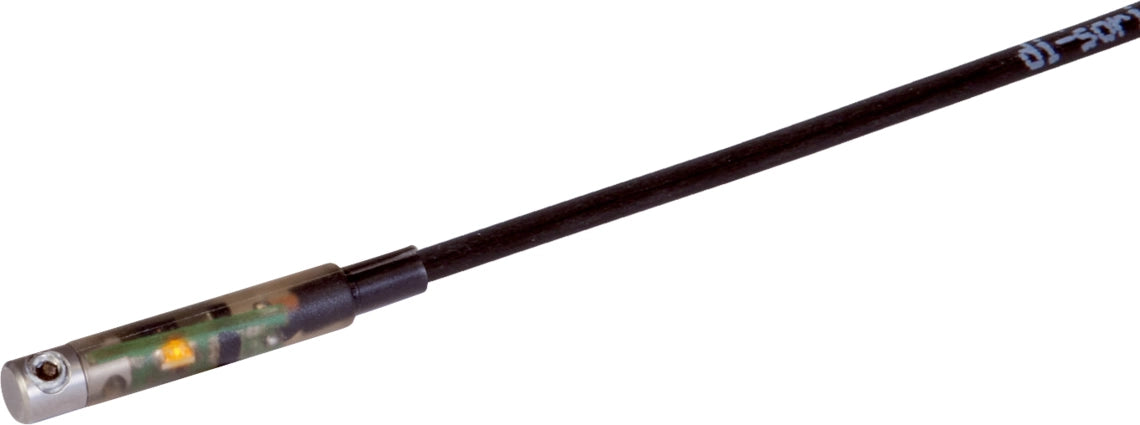

DI-Soric MZEC 3.7 PS-K-IBS

Our cylinder sensors for C groove are designed for all common pneumatic cylinders with installed magnets.

• For pneumatic cylinders with round groove 3.7 mm
• Short design
• Mounting element made of stainless steel
• Highly flexible cable
• Fully electronic
• Molded electronic circuitry
• High reproducibility
• High protection type

Current-carrying capacity	100 mA, not short-circuit-proof, polarity-safe
Service voltage	10 … 30 V DC
No-load current (max.)	11 mA
Insulation voltage endurance	500 V
Cylinder groove	C-groove 3.7 mm, insertion in lateral direction of groove
Mounting	Locking screw (Allen screw SW 1.3 mm)
Diameter	Ø 3.7 mm (Diameter)
Housing length	21 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304) / Plastic
Material of cable	TPU
Protection class	III, operation on protective low voltage
Operation on	Pneumatic cylinder
Product series	MZEC
Switching output	pnp, 100 mA, NO
Voltage drop (max.)	2 V
Switching capacity	< 3 W (30 V, 100 mA)
Reproducibility	< 0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-20 … +70 °C
Protection type	IP 67
Connection	Pigtail, 0.3 m, M12, 3-pin, 3 x 0.08 mm²
Connection cable	VK …
