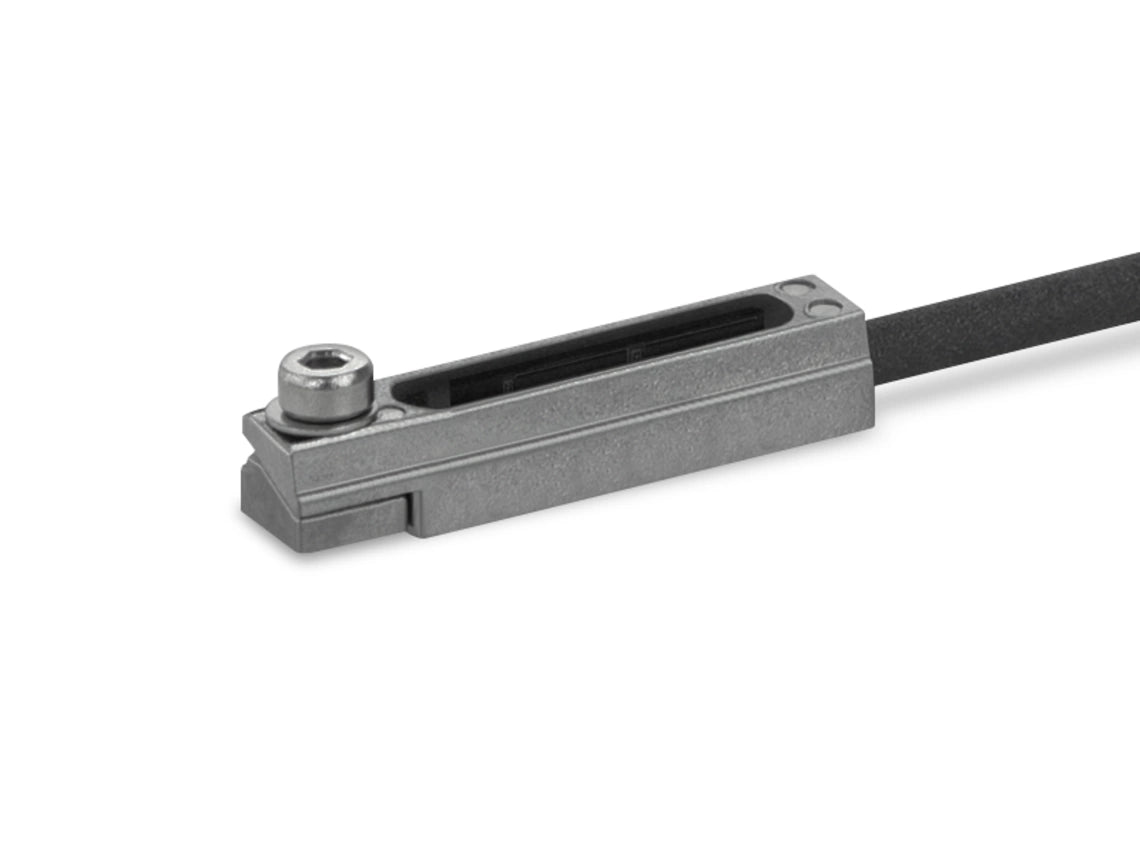

DI-Soric MZEKS 25 PS-K-TSSL

Our gripper sensors are designed and developed for gripper systems that are used in automated processes as end-of-arm tooling on portals and robots. The gripper systems are designed individually for the respective application cases in the most varied industries.

• Specially aligned magnetic field for use on grippers with T-slots
• Short design
• Fully electronic
• Fully molded electronic circuitry, vibration-resistant
• High reproducibility
• High protection type

Current-carrying capacity	100 mA, not short-circuit-proof, polarity-safe
Service voltage	10 … 35 V DC
No-load current (max.)	12 mA
Insulation voltage endurance	500 V
Cylinder groove	T-groove, Can be inserted into the groove from above
Mounting	Clamping block
Housing length	25 mm
Housing height	5 mm
Housing width	5.2 mm
Housing material	Die-cast zinc
Material of cable	Polyurethane
Protection class	III, operation on protective low voltage
Operation on	Gripper tongs
Product series	MZEKS
Switching output	pnp, 100 mA, NO, short-circuit-proof
Voltage drop (max.)	2 V
Switching capacity	< 3 W (30 V, 100 mA)
Reproducibility	< 0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68 (Device and cable) / IP 67 (Connection plug)
Connection	Pigtail, 0.3 m, M8, 3-pin
Connection cable	TK …
