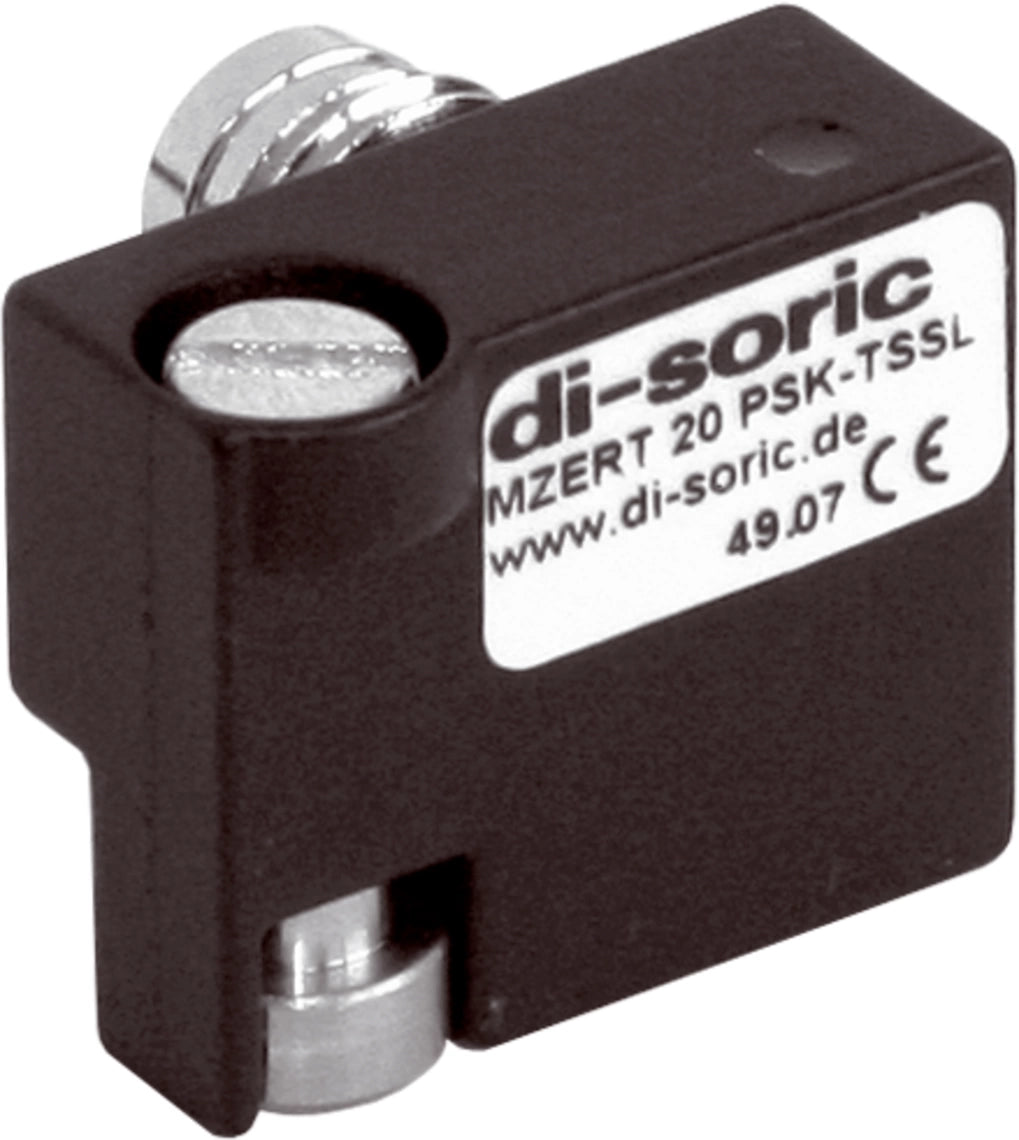

DI-Soric MZERT 20 PSK-TSSL

Our cylinder sensors for the T groove are designed for all common pneumatic cylinders with installed magnets.

• For pneumatic cylinders with T-shaped groove to be inserted from above
• Compact metal housing with metal connector M8
• Fully electronic
• High reproducibility
• High protection type

Current-carrying capacity	200 mA, short-circuit-proof, polarity-safe
Service voltage	10 … 30 V DC
No-load current (max.)	10 mA
Insulation voltage endurance	500 V
Cylinder groove	T-groove, Can be inserted into the groove from above
Mounting	Locknut
Housing length	20 mm
Housing height	17 mm
Housing width	15 mm
Housing material	Die-cast zinc
Protection class	III, operation on protective low voltage
Operation on	Pneumatic cylinder
Design	Connector on the housing
Product series	MZET
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Reproducibility	0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
