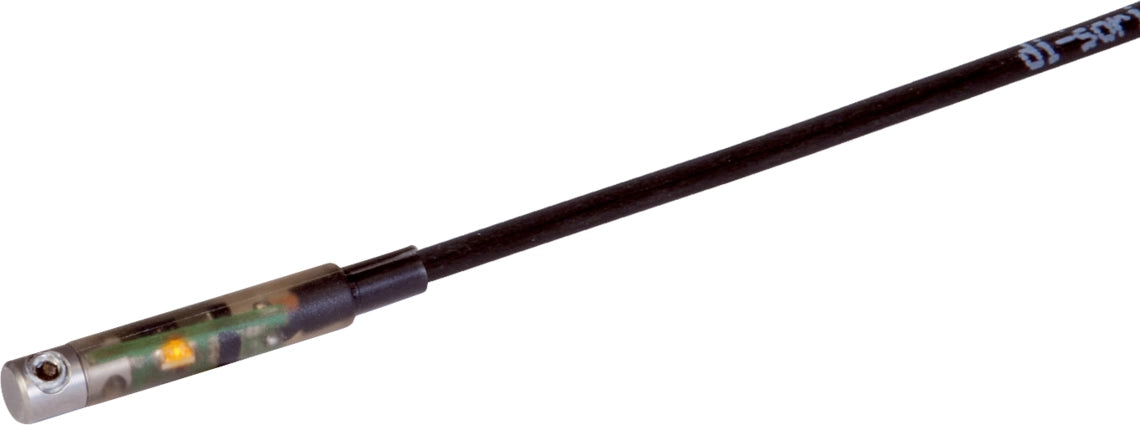

DI-Soric MZES 3.9 PS-K0.6-TSSL

Our gripper sensors are designed and developed for gripper systems that are used in automated processes as end-of-arm tooling on portals and robots. The gripper systems are designed individually for the respective application cases in the most varied industries.

• Specially aligned magnetic field for use on grippers with C-groove 3.9 mm
• Short design
• Mounting element made of stainless steel
• Highly flexible cable
• Fully electronic
• Fully molded electronic circuitry, vibration-resistant
• High reproducibility
• High protection type

Current-carrying capacity	100 mA, not short-circuit-proof, polarity-safe
Service voltage	10 … 35 V DC
No-load current (max.)	12 mA
Insulation voltage endurance	500 V
Cylinder groove	C-groove 3.9 mm, insertion in lateral direction of groove
Mounting	Locking screw
Diameter	Ø 3.9 mm (Diameter)
Housing length	21 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304) / Plastic
Material of cable	TPU
Protection class	III, operation on protective low voltage
Operation on	Gripper tongs
Product series	MZES
Switching output	pnp, 100 mA, NO
Voltage drop (max.)	2 V
Switching capacity	< 3 W (30 V, 100 mA)
Reproducibility	< 0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-20 … +70 °C
Protection type	IP 67
Connection	Pigtail, 0.6 m, M8, 3-pin
Connection cable	TK …
