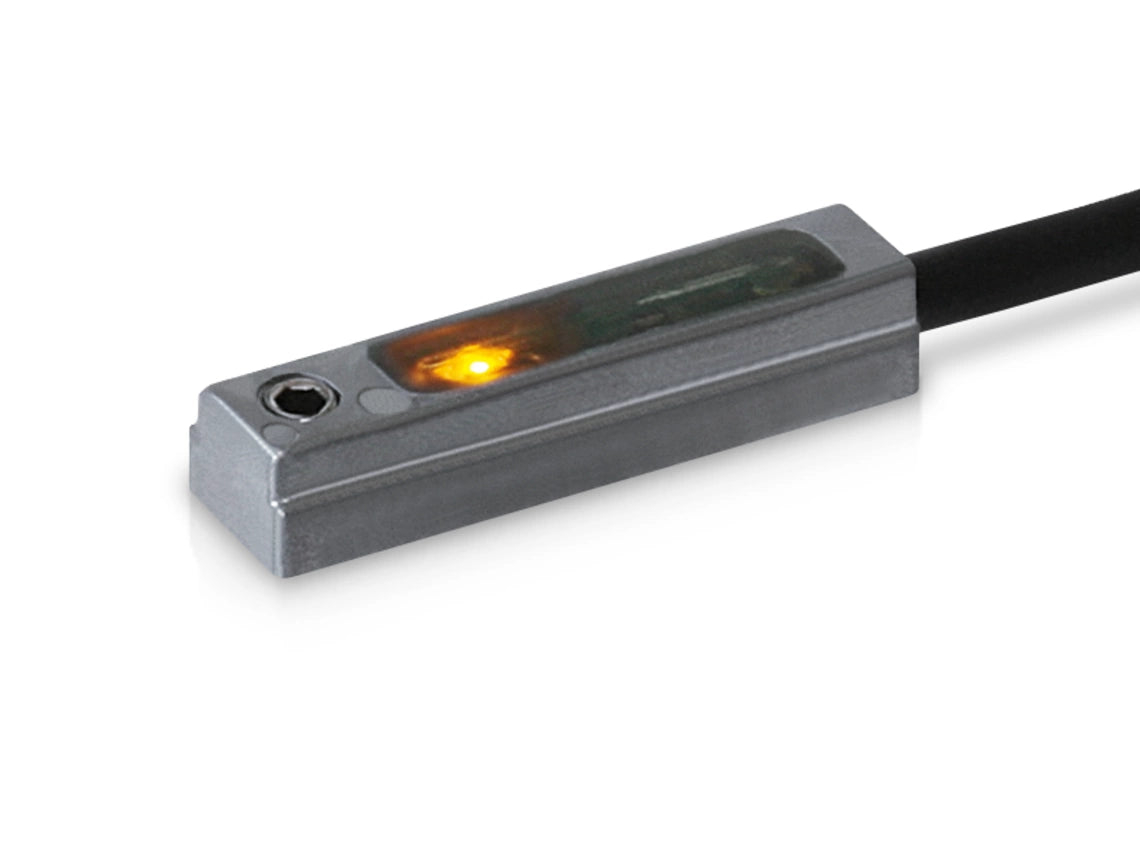

DI-Soric MZET 25 PSK-K0.6-TSSL

Our cylinder sensors for the T groove are designed for all common pneumatic cylinders with installed magnets.

• For pneumatic cylinders with T-groove
• Metal casing
• Fully electronic
• High reproducibility
• High protection type
• Accessories available for mounting on round, tie rod and profile cylinders

Current-carrying capacity	200 mA, short-circuit-proof, polarity-safe
Service voltage	10 … 30 V DC
No-load current (max.)	10 mA
Insulation voltage endurance	500 V
Cylinder groove	T-groove, insertion in lateral direction of groove
Mounting	Locking screw (Allen screw SW 1.5 mm)
Housing length	25 mm
Housing height	5 mm
Housing width	6.1 mm
Housing material	Die-cast zinc
Material of cable	Polyurethane
Protection class	III, operation on protective low voltage
Operation on	Pneumatic cylinder
Product series	MZET
Switching output	pnp, 200 mA, NO, short-circuit-proof
Voltage drop (max.)	2 V
Switching capacity	< 6 W (30 V, 200 mA)
Reproducibility	0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68 (Device and cable) / IP 67 (Connection plug)
Connection	Pigtail, 0.6 m, M8, 3-pin
Connection cable	TK …
