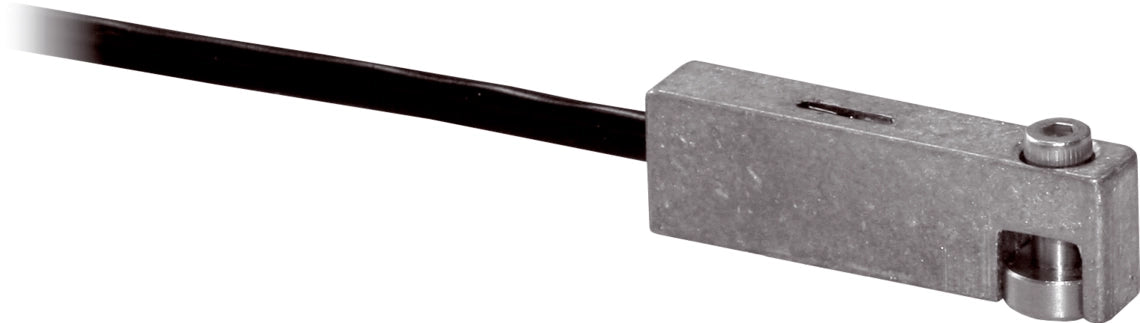

DI-Soric MZET 28 PSK-K-TSSL

Our cylinder sensors for the T groove are designed for all common pneumatic cylinders with installed magnets.

• To be inserted from above
• Metal casing
• Mechanically weld-proof
• Fully electronic
• High reproducibility

Current-carrying capacity	200 mA, short-circuit-proof, polarity-safe
Service voltage	10 … 30 V DC
No-load current (max.)	10 mA
Insulation voltage endurance	500 V
Cylinder groove	T-groove, Can be inserted into the groove from above
Mounting	Locknut (Allen screw SW 1.5 mm)
Housing length	28 mm
Housing height	8.5 mm
Housing width	5 mm
Housing material	Die-cast zinc
Material of cable	Polyurethane
Protection class	III, operation on protective low voltage
Operation on	Pneumatic cylinder
Design	Weld-proof
Product series	MZET
Switching output	pnp, 200 mA, NO, short-circuit-proof
Voltage drop (max.)	2 V
Reproducibility	< 0.1 mm
Display	LED yellow - Output signal
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68 (Device and cable) / IP 67 (Connection plug)
Connection	Pigtail, 0.3 m, M8, 3-pin
Connection cable	TK …
