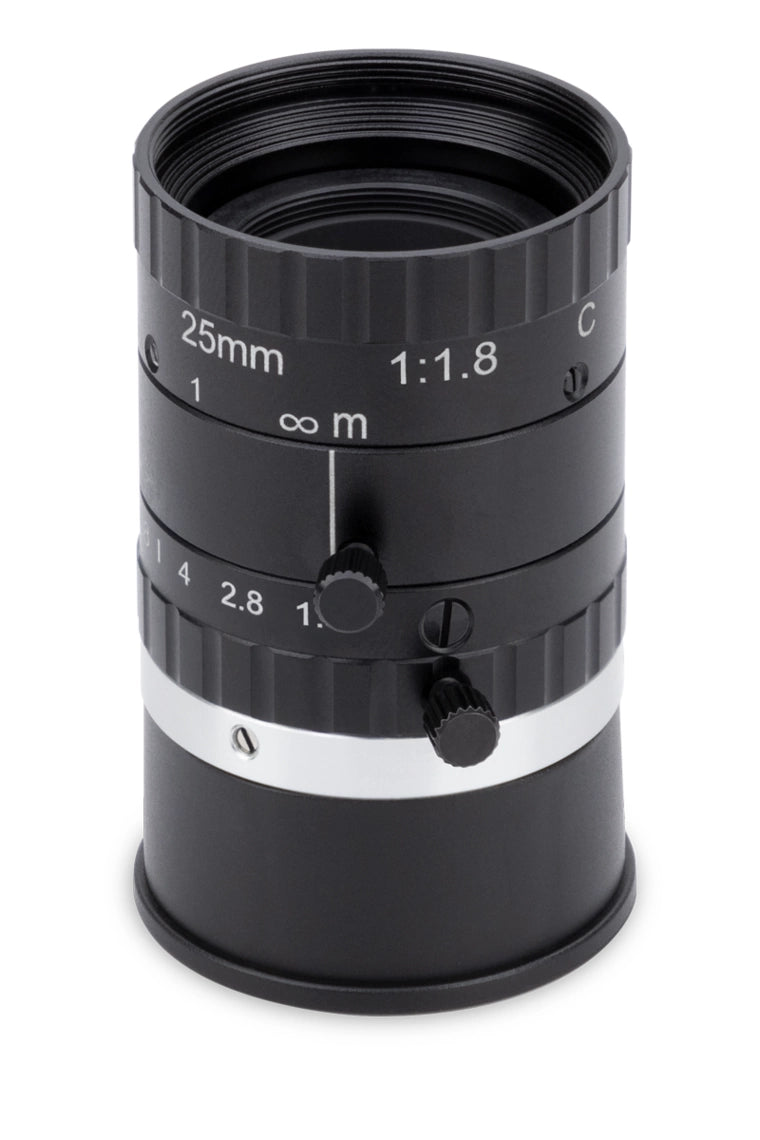

DI-Soric O-C2-S-25-14 Lenses

The lenses in the O-C series are standard lenses with a fixed focal length and represent a good value for the money. With various models with different focal lengths, this series is suited for many applications in industrial image processing. A filter thread comes standard in all models. The lenses are distinguished by low optical distortion.

• Compact design
• Lock screws for focus and iris adjustment
• Filters attachable
• High resolution

Lens connection	C-mount
Filter thread	M27 x 0.5
Weight	60.5 g
To be used for	Vision Systems and ID Systems
Focal length	25 mm
Aperture ratio	1:1.4
Aperture (F)	1.8
Distortion	< -0.1 %
Sensor size	max. 2/3"
Resolution	< 3 Megapixel
Minimum Object Distance MOD	150 mm
