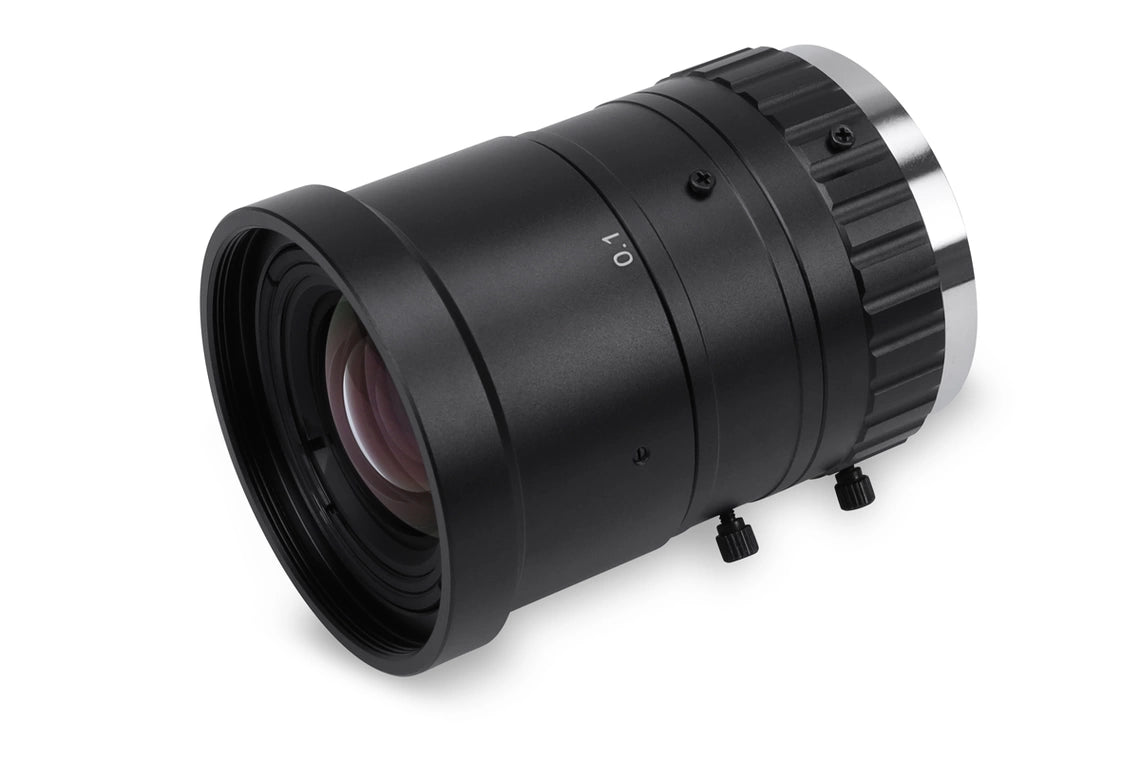

DI-Soric O-C5-S-12-18/IRO Lenses

The lenses in the O-C series are standard lenses with a fixed focal length and represent a good value for the money. With various models with different focal lengths, this series is suited for many applications in industrial image processing. A filter thread comes standard in all models. The lenses are distinguished by low optical distortion.

• Highest resolution
• Compact design
• Lock screws for focus and iris adjustment
• Filters attachable

Lens connection	C-mount
Filter thread	M46 x 0.75
Characteristics	IR-optimized
To be used for	Vision Systems and ID Systems
Focal length	12 mm
Aperture ratio	1:1.8
Aperture (F)	2.8
Distortion	< 0.51 %
Sensor size	max. 1.1”
Resolution	< 12 Megapixel
Minimum Object Distance MOD	100 mm
