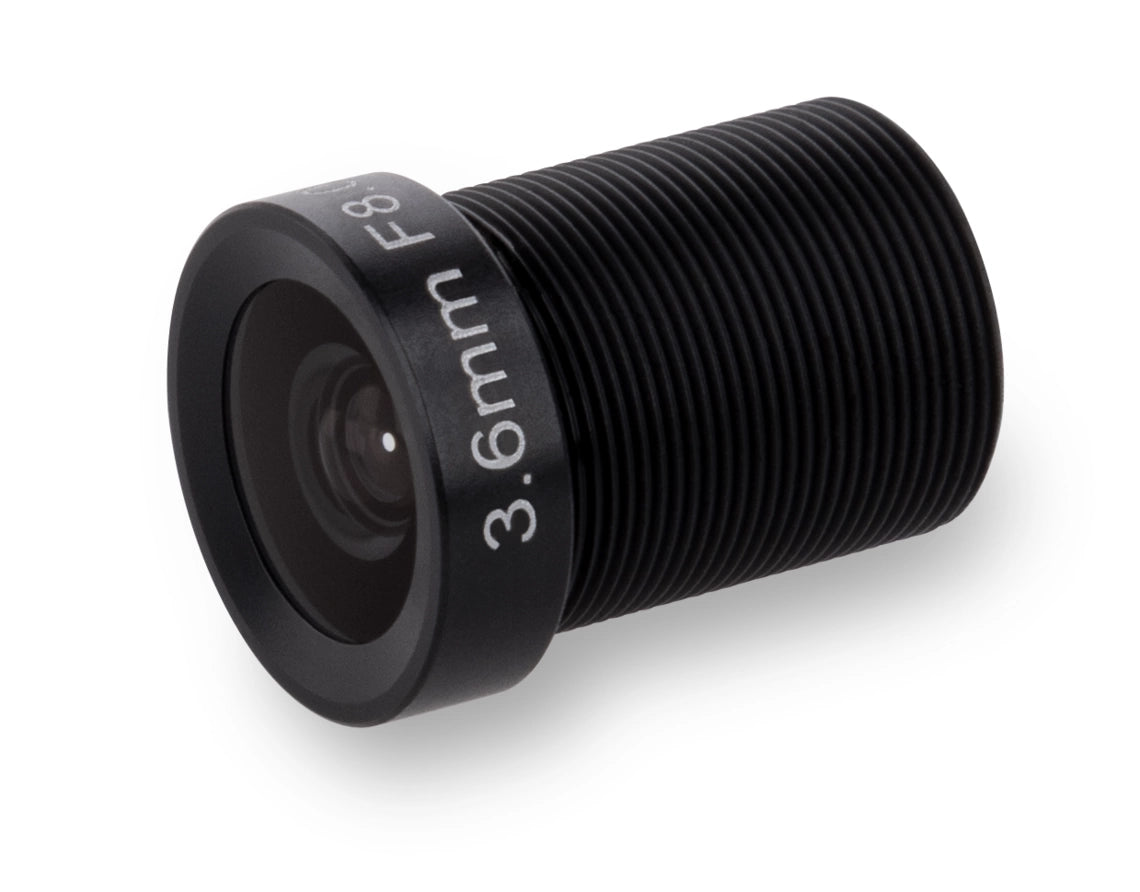

DI-Soric O-S1-S-036-80

O-S lenses with S-mount for Vision Sensors CS-60 and ID Readers ID-600 are available with different focal lengths and apertures and convince by a very robust mechanical design as well as highest optical quality. Vision Sensors CS-60

• IR-cut filter coating
• Light shutter
• High resolution
• Robust design

Length	18.08 mm
Diameter	Ø 14 mm (Diameter)
Lens connection	S-mount
Filter thread	M12 x 0.5
Wavelength	400 … 950 nm
Focal length	3.6 mm
Aperture (F)	8.0
First principal plane	16.642 mm
Second principal plane	3.59 mm
Angle of view (object)	55.44°
Angle of view (image)	9.77°
Aperture type	Fixed
Sensor size	1/2.5"
Resolution	5 Megapixel
Working distance	endless
Temperature resistance	-20 … +65 °C
