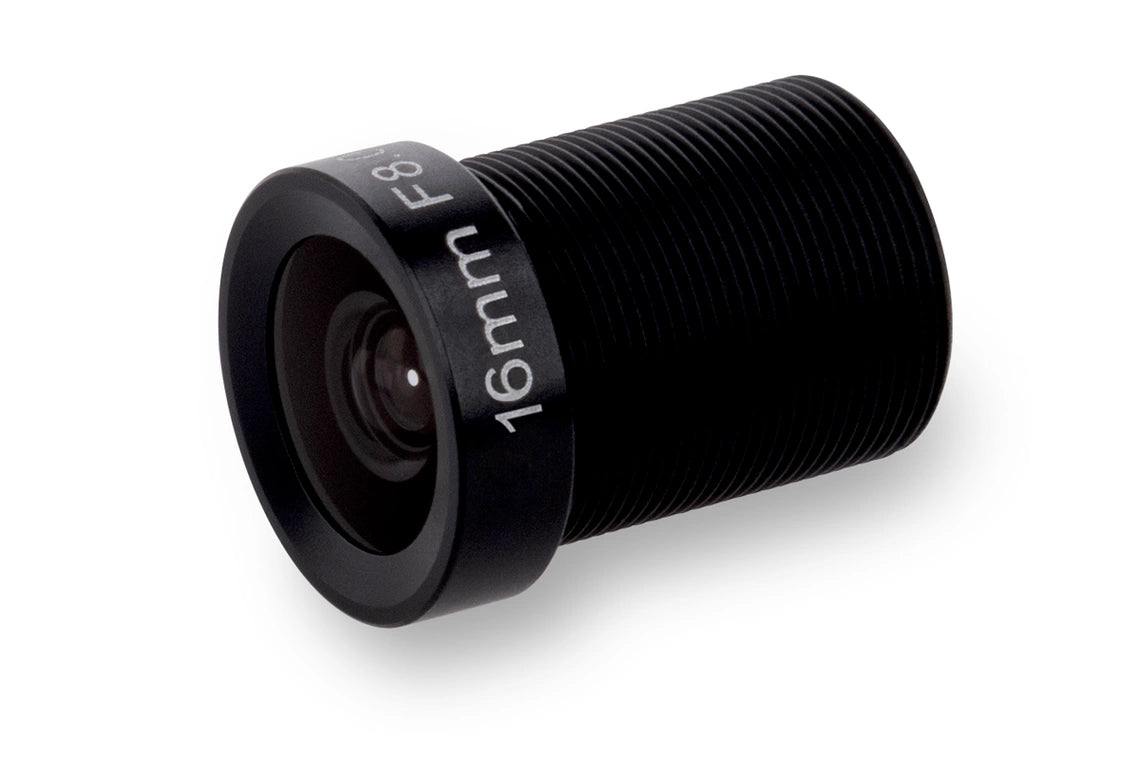

DI-Soric O-S1-S-160-80

O-S lenses with S-mount for Vision Sensors CS-60 and ID Readers ID-600 are available with different focal lengths and apertures and convince by a very robust mechanical design as well as highest optical quality. Vision Sensors CS-60

• IR-cut filter coating
• Light shutter
• High resolution
• Robust design

Length	13.46 mm
Diameter	Ø 14 mm (Diameter)
Lens connection	S-mount
Filter thread	M12 x 0.5
Weight	4.5 g
Wavelength	400 … 950 nm
Focal length	16 mm
Aperture (F)	8.0
First principal plane	14.84 mm
Second principal plane	15.93 mm
Angle of view (object)	21.3°
Angle of view (image)	14.64°
Aperture type	Fixed
Sensor size	1/3"
Resolution	2 Megapixel
Working distance	endless
Temperature resistance	-20 … +65 °C
