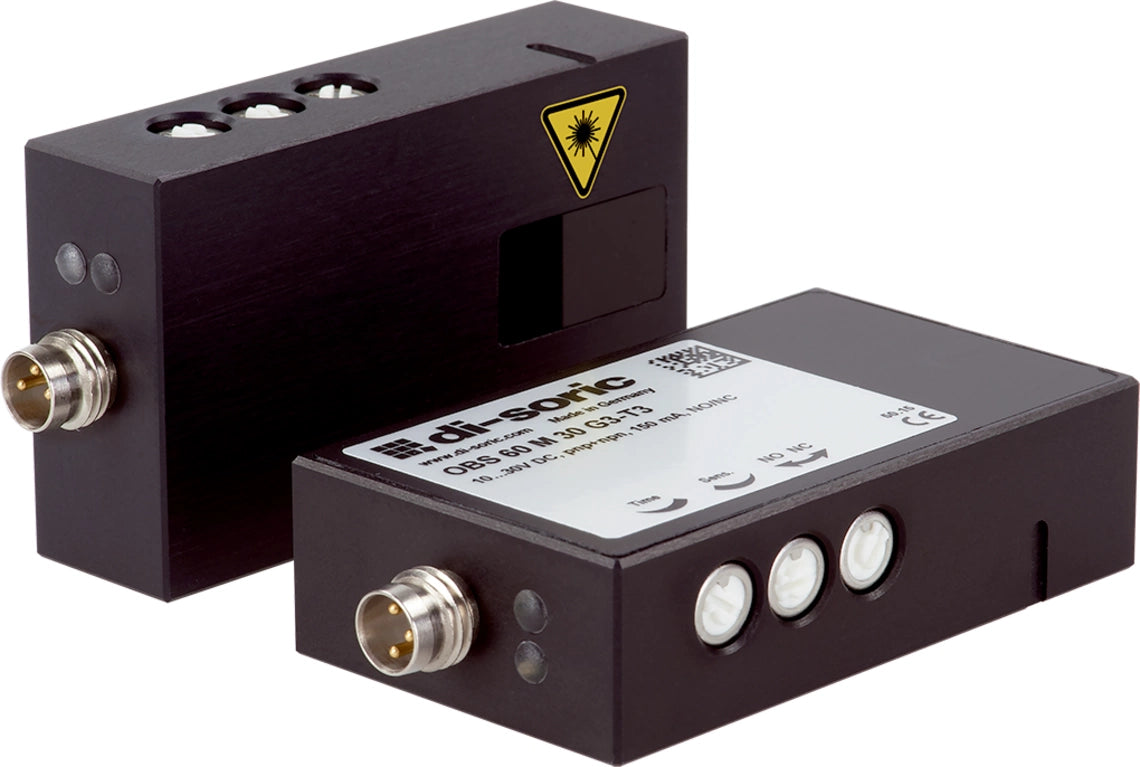

DI-Soric OBS 60 M 30 G3-T3 Optical movement sensor

The OBS optical movement sensors are used for contact-free close-range detection of movements and direction of movement. The sensors have a detection range of 20 mm to 40 mm. They can distinguish between movement and standstill and, optionally, can detect the direction of movement. The standstill speed up to 5 m/s is set simply by way of potentiometer.

• For contactless feed control, also suitable at low speed and with wires
• Detection of metallic, non-metallic and shiny surfaces
• Robust metal housing
• High protection type

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing material	Aluminum (Black, Anodized)
Material window / optics	PMMA
Protection class	III, operation on protective low voltage
Operating principle	Optical
Evaluation	digital
Design	Cuboid design
Characteristics	For contactless feed control, also suitable at low speed and with wires
Switching output	Push-pull, 150 mA, NO/NC, switchable
Voltage drop (max.)	2.5 V
Pulse stretching	1 … 1000 ms adjustable
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Infrared
Wavelength	850 nm (Pp < 0,77 mW t = cw-Laser)
Light spot size	Ø 2 mm
Ambient light immunity	5 kLx
Switching distance	20 … 40 mm
Switching hysteresis (max.)	Fixed 16 % max. 0.1 m/s
Sensitivity adjustment	Potentiometer
Display	LED green - Operation, yellow - Switching output
Speed of parts (max.)	5 m/s (material-dependent)
Response time	10 ms
Ambient temperature during operation	+5 … +45 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
