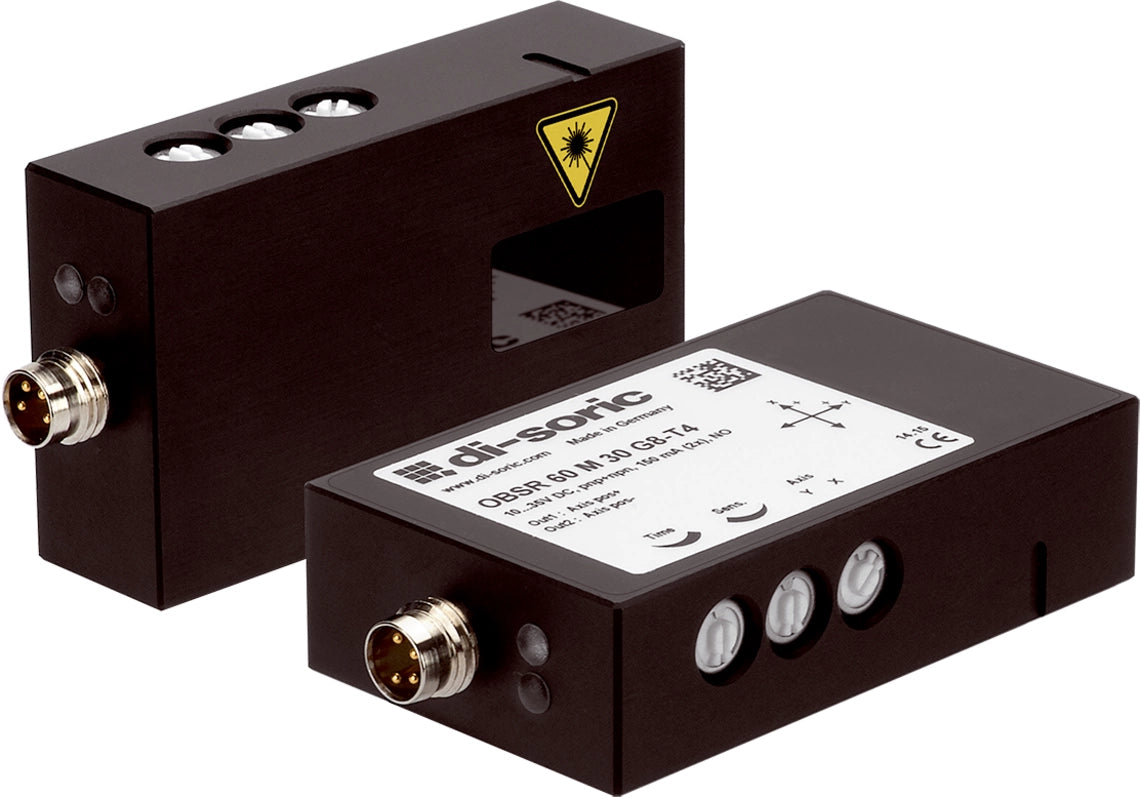

DI-Soric OBSR 60 M 30 G8-T4 Optical movement sensor

The OBS optical movement sensors are used for contact-free close-range detection of movements and direction of movement. The sensors have a detection range of 20 mm to 40 mm. They can distinguish between movement and standstill and, optionally, can detect the direction of movement. The standstill speed up to 5 m/s is set simply by way of potentiometer.

• Detection of direction
• X- or Y-axis switchable
• For contactless feed control
• Detection of metallic, non-metallic and shiny surfaces
• Two switching outputs
• Robust metal housing
• High protection type

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing material	Aluminum (Black, Anodized)
Material window / optics	PMMA
Protection class	III, operation on protective low voltage
Operating principle	Optical
Evaluation	digital
Design	Cuboid design
Characteristics	Detection of direction, X- or Y-axis switchable
Switching output	Push-pull (2x), 150 mA
Voltage drop (max.)	2.5 V
Pulse stretching	1 … 1000 ms adjustable
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Infrared
Wavelength	850 nm (Pp < 0,77 mW t = cw-Laser)
Light spot size	Ø 2 mm
Ambient light immunity	5 kLx
Switching distance	20 … 40 mm
Switching hysteresis (max.)	Fixed 16 % max. 0.1 m/s
Sensitivity adjustment	Potentiometer
Display	LED (2x) yellow - Switching output
Speed of parts (max.)	5 m/s (material-dependent)
Response time	10 ms
Ambient temperature during operation	+5 … +45 °C
Protection type	IP 67
Connection	Connector, M8, 4-pin
Connection cable	TK …
