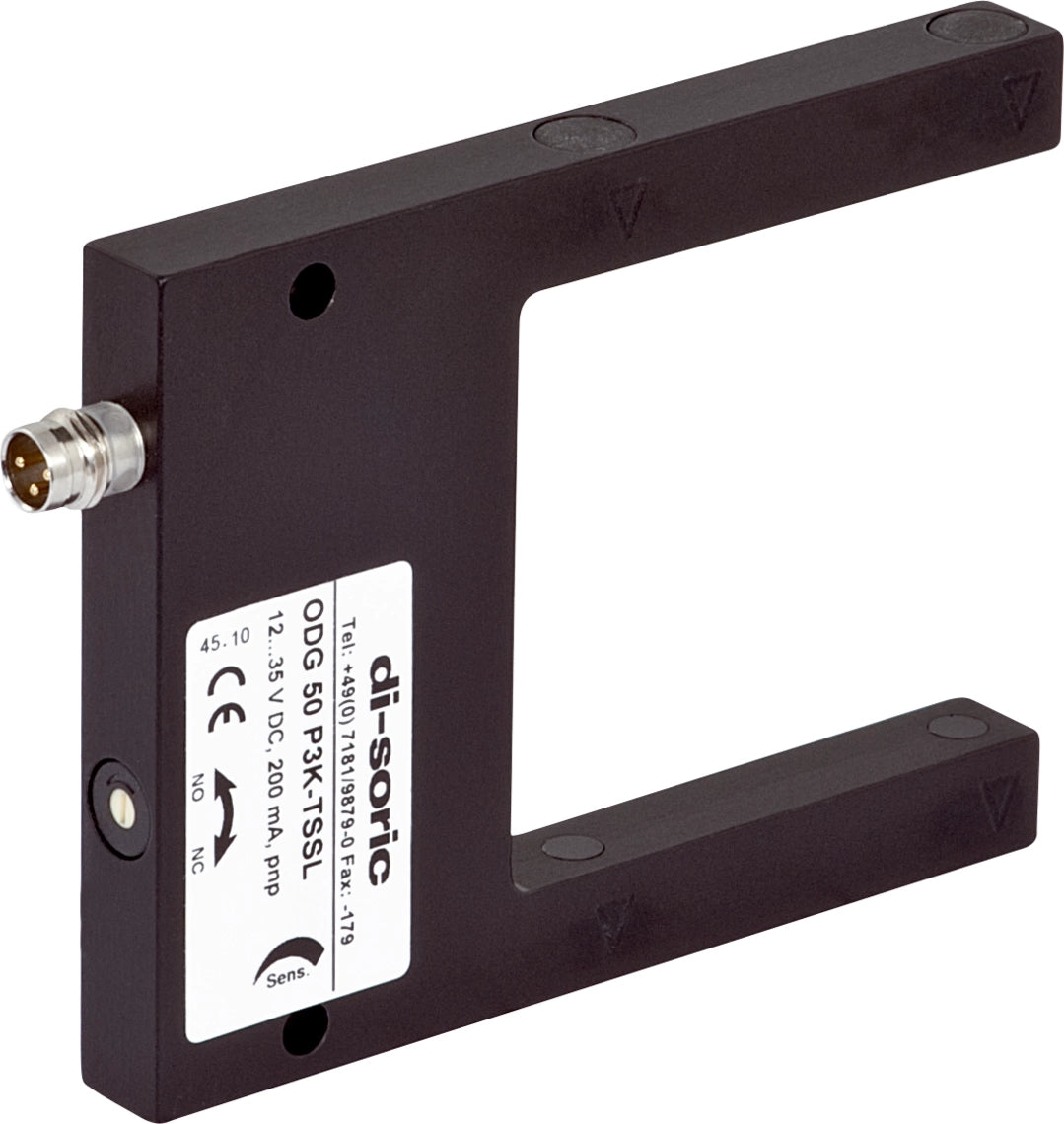

DI-Soric ODG 50 P3K-TSSL Fork light barrier in special design

Fork light barriers in specific designs complete the extensive range that di-soric offers. Differential fork light barriers detect even minimal remission differences (diffuse reflection) for the detection of films that are very thin and as clear as glass.

• High resolution
• Metal casing
• Electronics integrated
• Differential evaluation
• Sensitivity is adjustable
• High switching frequency
• Light/dark switching
• Bright ring LED

Service voltage	12 … 35 V DC
No-load current (max.)	35 mA
Insulation voltage endurance	500 V
Fork opening	50 mm
Leg length internal	55 mm
Housing dimensions	70 x 90 x 10 mm
Housing length	90 mm
Housing height	70 mm
Housing width	10 mm
Housing material	Aluminum (Black, Anodized)
Protection class	III, operation on protective low voltage
Operating principle	Optical
Evaluation	digital, differential
Design	Fork
Switching output	pnp, 200 mA, NO/NC, switchable
Voltage drop (max.)	2.5 V
Light source	LED
Color	Infrared
Modulation	non-clocked
Ambient light immunity	5 kLx
Resolution	Ø 0.1 mm
Switching hysteresis (max.)	0.2 mm
Reproducibility	0.01 mm
Sensitivity adjustment	Potentiometer
Switching frequency	5000 Hz
Ambient temperature during operation	0 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
