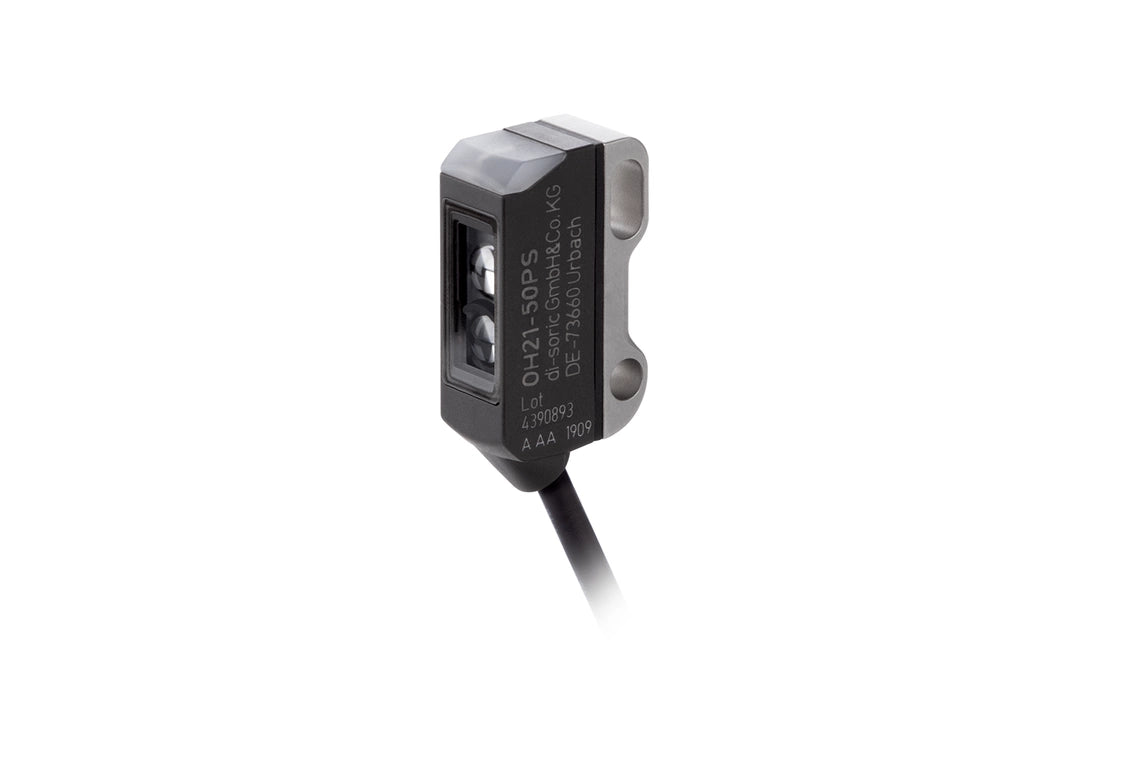

DI-Soric OE21-PS-0.3T3, One-way light barrier O-21, P\n: 212993

Through-beam sensors consist of transmitter and receiver, each of which are arranged in a housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.

• Miniature design
• Mounting element made of metal
• High switching frequency
• Long range
• IO-Link
• Diagnostic function reserve

Service voltage	10 … 30 V DC
No-load current (max.)	15 mA
Inverse polarity protection	Yes
Housing dimensions	28.1 x 14.4 x 8.1 mm
Housing length	14.4 mm
Housing height	28.1 mm
Housing width	8.1 mm
Housing material	Stainless steel / Plastic
Material	Plastic (Window / optics)
Weight	21 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Through-beam sensor
Evaluation	digital
Design	Cuboid design
Consisting of	Receiver
Switching output	pnp, 100 mA, NO/NC, configurable
Voltage drop (max.)	2.5 V
Interface	IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light source	LED
Range	3000 mm (configurable)
Sensitivity adjustment	IO-Link
Display	LED green - Status, yellow - Switching output
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 65 / IP 67
Connection	Pigtail, 0.3 m, M8, 3-pin
Connection cable	TK …
