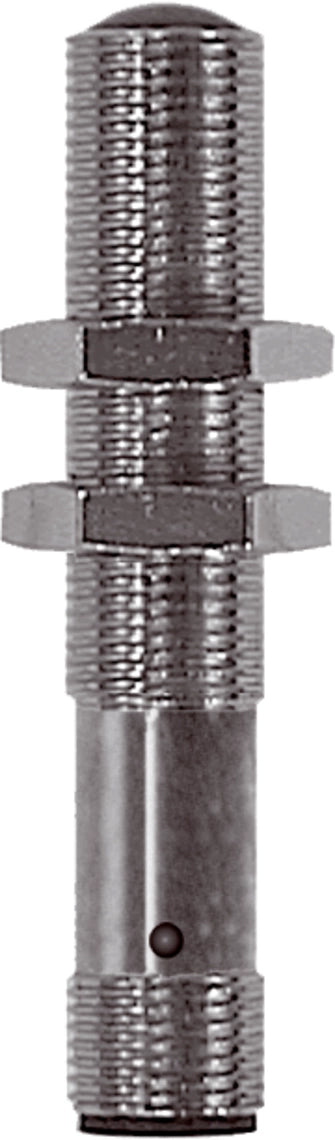

DI-Soric OEP 12 V 5000 G1-IBSL High performance light barrier OP-M12

The threaded M12 model consists of a transmitter and receiver in a compact construction and simple threaded mounting. Through the robust stainless steel housing, the systems are insensitive to vibrations and shaking and therefore do not have to be continually adjusted.

• Range up to 5 m
• Integrated amplifier electronics
• Transistor output with push-pull
• High function reserve
• Extremely dirt-resistant
• Easy adjustment
• Different designs to be combined
• High protection type
• Compact design

Service voltage	10 … 35 V DC
No-load current (max.)	40 mA
Thread	M12 x 1
Housing length	66 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304)
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor, receiver
Evaluation	digital
Design	Thread
Characteristics	High transmit power and dirt penetration
Consisting of	Receiver
Switching output	Push-pull, 200 mA, NC (pnp) / NO (npn)
Ambient light immunity	15 kLx Sunlight, 2 kLx Clocked light
Range	0 … 5000 mm (dependent on the transmitter)
Sensitivity adjustment	no setting elements
Switching frequency	500 Hz
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation	-20 … +60 °C
Protection type	IP 67 / IP 68 / IP 69K
Connection	Connector, M12, 3-pin
