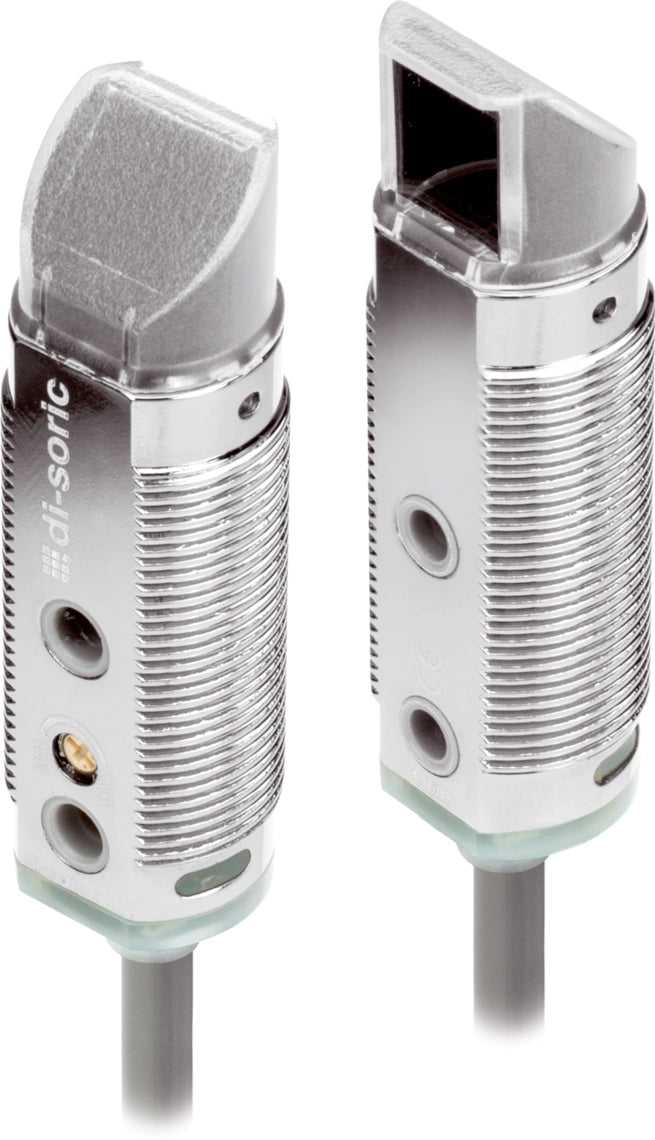

DI-Soric OES 18 FMR 8000 N3 Through-beam sensor O-M18 Basic

Through-beam sensors consist of transmitter and receiver, each of which are arranged in its own housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.

• Angled optics
• Universal mounting options
• Low installation depth
• Sensitivity is adjustable
• LED switching status display
• Metal casing

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Thread	M18 x 1
Housing length	57.5 mm
Housing material	Metal
Material of cable	PVC
Material	PMMA (Window)
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor
Evaluation	digital
Design	Thread, Angled optics
Consisting of	Transmitter and Receiver
Switching output	npn, 100 mA, NO/NC
Light source	LED
Color	Infrared
Wavelength	880 nm
Modulation	Clocked
Ambient light immunity	3 kLx Clocked light, 10 kLx Sunlight
Range	0 … 8000 mm
Sensitivity adjustment	Potentiometer
Switching frequency	333 Hz
Response time	1.5 ms
Release time	1.5 ms
Ambient temperature during operation	-25 … +55 °C
Protection type	IP 67
Connection	Cable, 2.0 m
