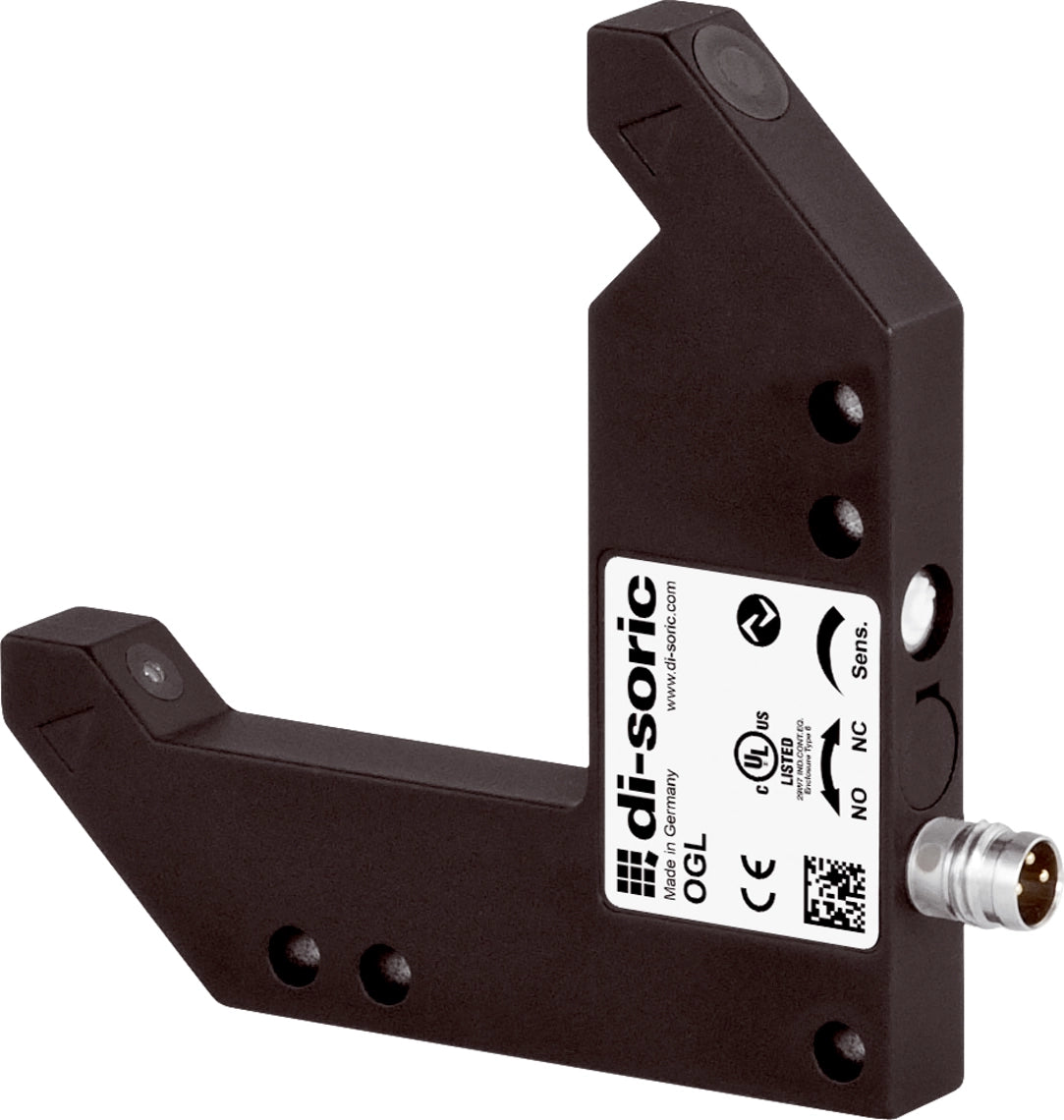

DI-Soric OGL 050 G3-T3 Angled light barrier OGL with LED
DI-Soric OGL 050 G3-T3 Angled light barrier OGL with LED
Regular price
€223,58
Regular price
Sale price
€223,58
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 01.12.2025
Couldn't load pickup availability
SKU: SKU:210633
The OGL angled light barrier offers unsurpassed performance and can be operated with a potentiometer. The OGL offers high resolution and reproducibility with outstanding speed. It is operated intuitively using potentiometers or IO-Link. Four preset operating modes make ideal adaptation to the application possible, and simultaneously, IO-Link offers important advantages in configuration and diagnosis.
View full details
- 4 operating modes as an IO-Link parameter
- Switch-on/off delay as an IO-Link parameter
- Diagnostics with IO-Link
- Metal casing
- Sensitivity is adjustable
- High switching frequency
- Light/dark switching
- Bright ring LED
- High protection type
| Service voltage | 10 … 30 V DC (Supply Class 2) |
| No-load current (max.) | 30 mA |
| Insulation voltage endurance | 500 V |
| Leg length internal | 50/50 mm |
| Housing dimensions | 75 x 75 x 10 mm |
| Housing length | 75 mm |
| Housing height | 75 mm |
| Housing width | 10 mm |
| Housing material | Die-cast zinc (powder-coated) |
| Material | Mineral glass (Optics) |
| Protection class | III, operation on protective low voltage |
| Approvals | UL |
| Operating principle | Optical |
| Evaluation | digital |
| Design | Angle |
| Switching output | Push-pull, 100 mA, NO/NC, switchable |
| Voltage drop (max.) | 1 V |
| Interface | IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) |
| Light source | LED |
| Color | Infrared |
| Wavelength | 880 nm |
| Modulation | Clocked |
| Ambient light immunity | 25 kLx |
| Range | 60 mm (optical axis) |
| Resolution (factory setting) | 0.3 mm (STANDARD) |
| Reproducibility (factory setting) | 0.02 mm (STANDARD) |
| Resolution (STANDARD) | 0.3 mm |
| Reproducibility (STANDARD) | 0.02 mm |
| Resolution (HIGH RESOLUTION) | 0.2 mm |
| Reproducibility (HIGH RESOLUTION) | 0.02 mm |
| Resolution (POWER) | 1 mm |
| Reproducibility (POWER) | 0.02 mm |
| Resolution (SPEED) | 0.3 mm |
| Reproducibility (SPEED) | 0.02 mm |
| Sensitivity adjustment | Potentiometer |
| Switching frequency (factory setting) | 5000 Hz (STANDARD) |
| Switching frequency (STANDARD) | 5000 Hz |
| Switching frequency (HIGH RESOLUTION) | 1500 Hz |
| Switching frequency (POWER) | 250 Hz |
| Switching frequency (SPEED) | 8000 Hz |
| Shock/vibration load | 30 g, 10 … 55 Hz / 0.5 mm |
| Ambient temperature during operation | -25 … +60 °C |
| Protection type | IP 67 |
| Connection | Connector, M8, 3-pin |
| Connection cable | TK … |
