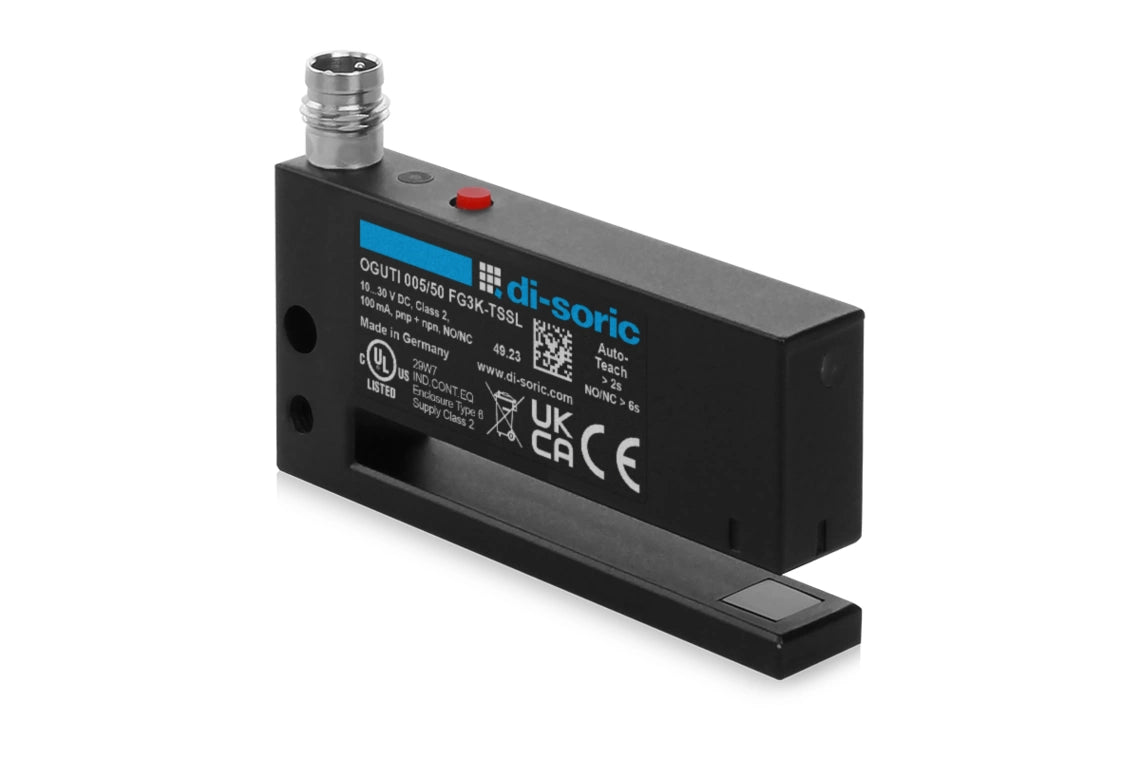

DI-Soric OGUTI 005/50 FG3K-TSSL Optical label sensor OGUTI

OGUTI optical label sensors are the economical solution for detecting paper labels. They boast extremely high dispensing precision and reproducibility, making maximum belt speeds possible. Using auto-teach, they can be taught in to new materials quickly and intuitively.

• Fast, simple, safe: Sensitivity adjustment via teach key
• Auto-teach during a running process
• Remote teach option with key-lock function
• LED indicator for the teach procedure
• Detection of an extremely wide range of different labels
• Large functional reserve
• To be integrated in edge of the label dispenser

Service voltage	10 … 30 V DC (Supply Class 2)
No-load current (max.)	35 mA
Insulation voltage endurance	500 V
Fork opening	5 mm
Leg length internal	50 mm
Housing dimensions	60 x 28.5 x 10 mm
Housing length	60 mm
Housing height	28.5 mm
Housing width	10 mm
Housing material	Die-cast zinc (Black, painted)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Optical
Evaluation	digital
Design	Fork
Product series	OGUTI Optical
Switching output	Push-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	LED
Color	Infrared
Wavelength	880 nm
Modulation	Clocked
Ambient light immunity	40 kLx
Switching hysteresis (max.)	0.15 mm
Label interspace	> 2 mm
Reproducibility	< 0.05 mm
Sensitivity adjustment	Teach button, Remote teach
Switching frequency	3000 Hz
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 4-pin
Connection cable	TK … /4
