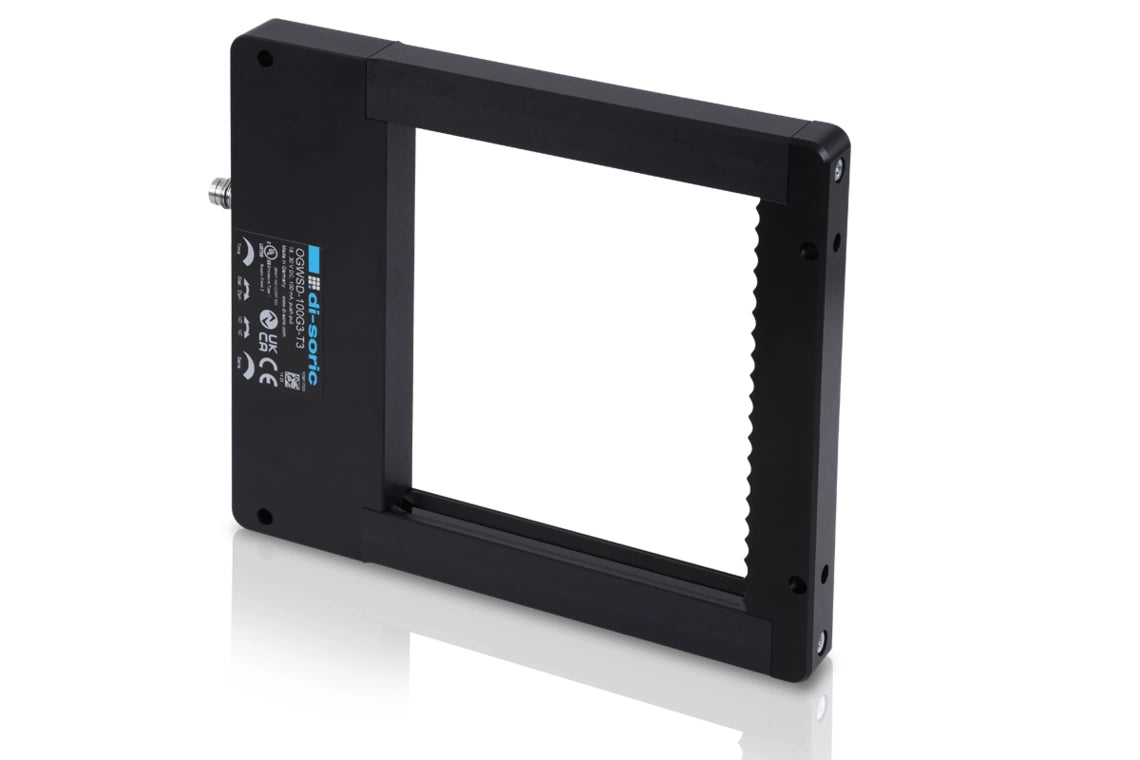

DI-Soric OGWSD-100G3-T3 Frame light barriers OGWSD

Frame light barriers of the OGWSD series have a frame design and detect objects in a range of up to 300 x 397 mm. The devices are ideal for harsh machine environments with heavy mechanical stresses. The OGWSD has a robust metal housing with impact protection and crossbar and can quickly be set via potentiometers. IO-Link offers advantages in configuration and diagnosis.

• IO-Link
• Frame structure
• Robust metal housing
• Baffle protection at the optics
• Cross bar, removable
• High resolution
• Short response time
• Potentiometer for adjustment
• Operating principle: dynamic or static
• 4 operating modes as an IO-Link parameter

Service voltage	18 … 30 V DC
No-load current (max.)	45 mA
Inverse polarity protection	Yes
Short-circuit protection	Yes
Housing dimensions	151.5 x 130 x 15 mm
Housing length	151.5 mm
Housing height	15 mm
Housing width	130 mm
Housing material	Aluminum (Black, Anodized)
Material	Plastic (Window)
Weight	300 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Optical
Evaluation	Switching, Dynamic/static switchable
Operating modes	Static, Dynamic, Shadowing
Switching output	Push-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Pulse stretching	0 … 150 ms adjustable
Light source	LED
Color	Infrared
Detection range	100 x 92 mm
Resolution	Ø 3.0 mm (static), Ø 2.5 mm (dynamic)
Sensitivity adjustment	Potentiometer
Display	LED yellow - Switching output
Response time	0.05 ms
Release time	0.05 … 10000 ms
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
