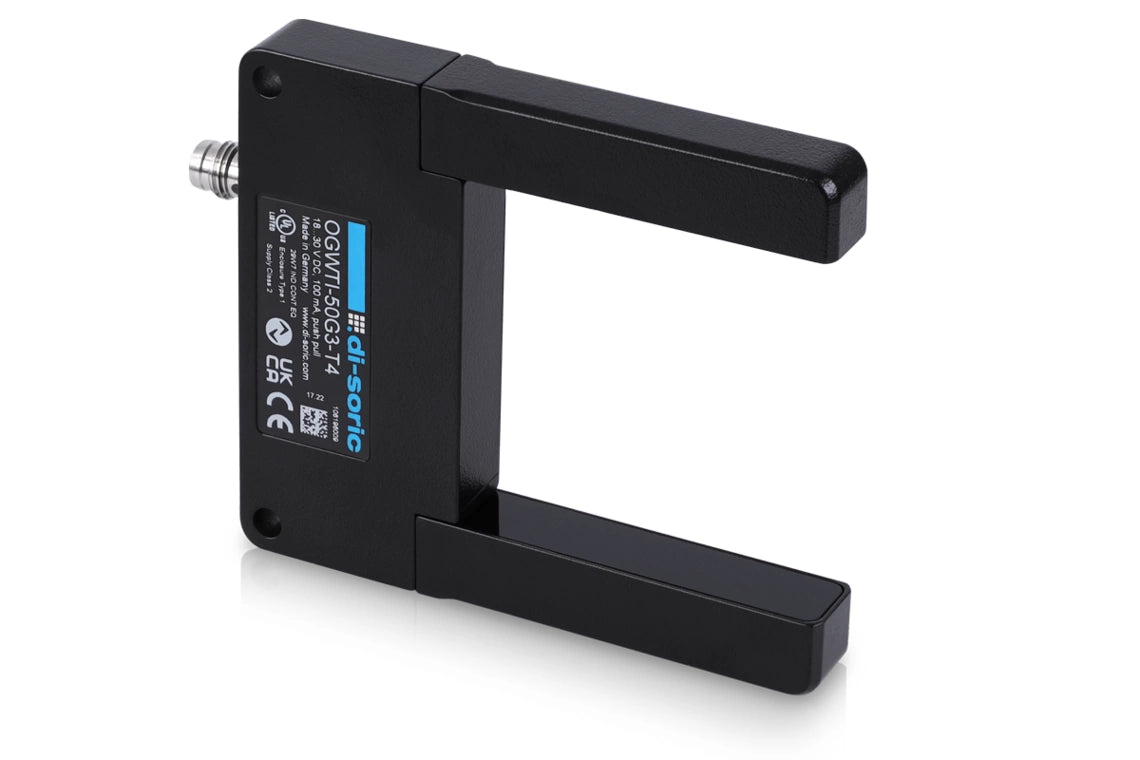

DI-Soric OGWTI-50G3-T4 Frame light barriers OGWTI

Frame light barriers of the OGWTI series have an open fork design and detect objects in a range of up to 100 x 100 mm. With their compact design, the devices are ideal for integration in machinery. OGWTI has a robust metal housing and can be operated intuitively via a keypad.

• IO-Link
• Fork structure
• Robust metal housing
• Compact design
• High resolution
• Short response time
• Intuitive teach-in using a membrane keyboard and with fine adjustment
• Operating principle: dynamic or static
• 4 operating modes as an IO-Link parameter

Service voltage	18 … 30 V DC
No-load current (max.)	< 45 mA
Inverse polarity protection	Yes
Short-circuit protection	Yes
Housing dimensions	86 x 74 x 12 mm
Housing length	86 mm
Housing height	12 mm
Housing width	74 mm
Housing material	Die-cast zinc (Black, powder-coated)
Material	Plastic (Window)
Weight	130 g
Approvals	UL
Operating principle	Optical
Evaluation	Switching, Dynamic/static switchable
Design	Fork
Operating modes	Static, Dynamic, Shadowing
Switching output	Push-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Pulse stretching	20 ms adjustable
Light source	LED
Color	Infrared
Detection range	50 x 50 mm
Resolution	Ø 1.0 mm (dynamic), Ø 1.5 mm (static)
Sensitivity adjustment	Keypad
Display	LED green - Status, yellow - Switching output 1, white - static/dynamic, yellow/red - Switching output 2 / Warning
Response time	0.05 ms
Release time	0.05 … 10000 ms
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 4-pin
Connection cable	TK … /4
