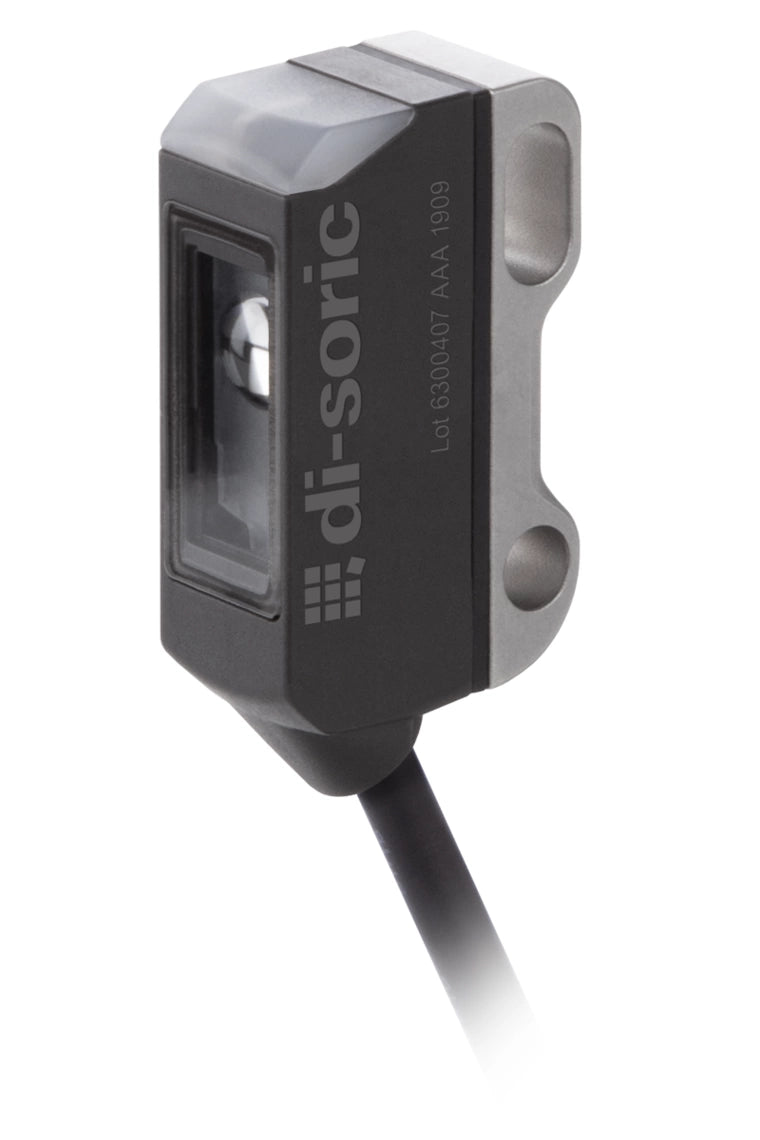

DI-Soric OH21-80NS-2C, Reflexionslichttaster mit Hintergrundausblendung O-21, P\n: 212978

Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

• Miniature design
• Mounting element made of metal
• High switching frequency
• Ideal background suppression
• Scanning range preset

Service voltage	10 … 30 V DC
No-load current (max.)	20 mA
Inverse polarity protection	Yes
Short-circuit protection	Yes
Housing dimensions	28.1 x 14.4 x 8.1 mm
Housing length	14.4 mm
Housing height	28.1 mm
Housing width	8.1 mm
Housing material	Stainless steel / Plastic
Material of cable	PVC
Material	Plastic (Window / optics)
Weight	37 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Diffuse sensor with background suppression
Evaluation	digital
Design	Cuboid design
Switching output	npn, 100 mA, NO
Voltage drop (max.)	2.5 V
Light source	LED (Clocked)
Color	Red
Wavelength	633 nm
Background suppression	Yes
Light spot size	Ø 4.0 mm (at distance of 80 mm)
Range	1 … 80 mm
Standardized measuring plate	200 x 200 mm (white)
Sensitivity adjustment	no setting elements
Display	LED green - Status, yellow - Switching output
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 65 / IP 67
Connection	Cable, 2.0 m, 3-pin
