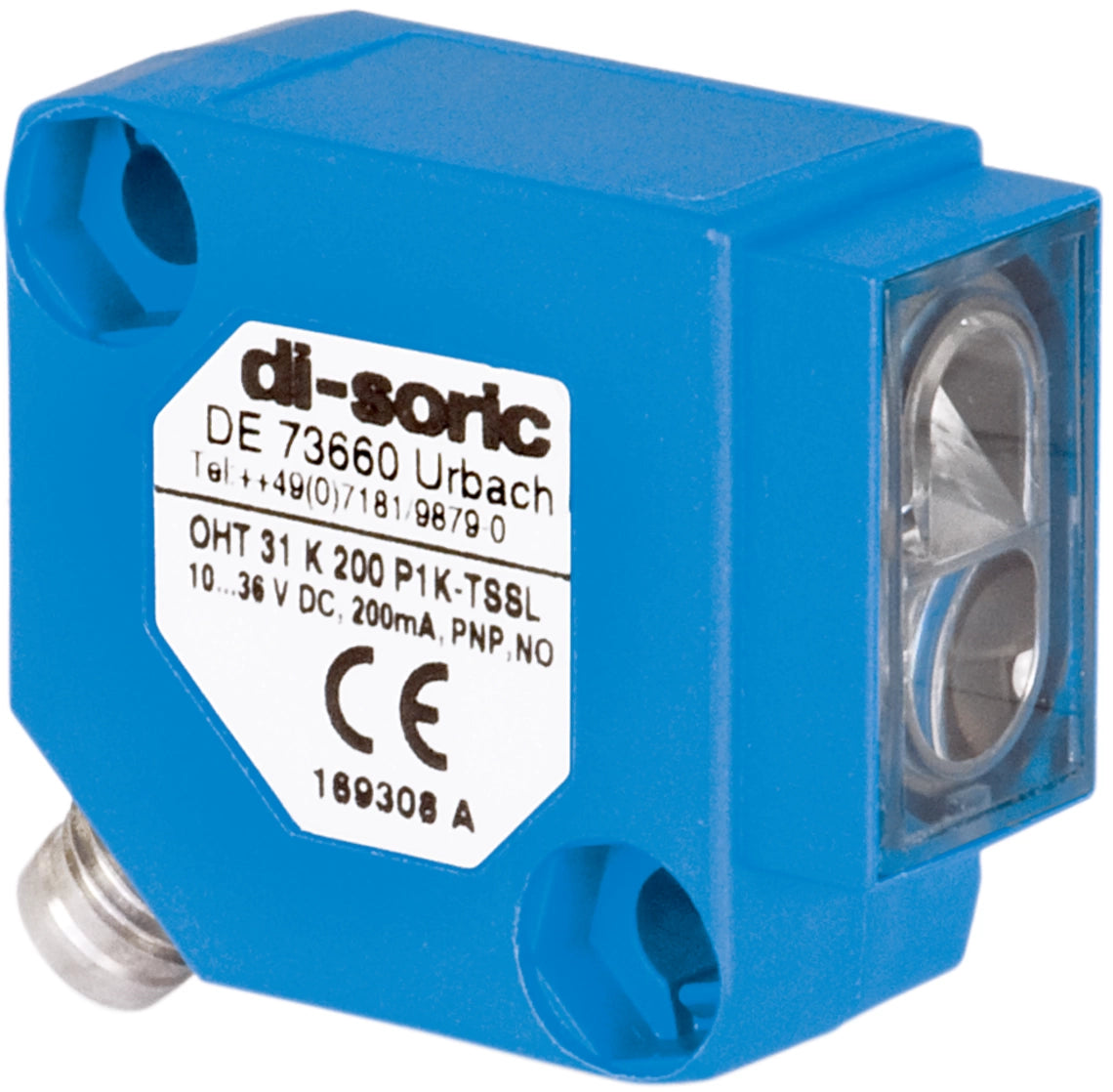

DI-Soric OHT 31 K 200 P2K-TSSL Retroreflective diffuse sensor with background suppression O-30

Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

• Compact design
• Red light
• 12-turn potentiometer
• Background suppression
• Sensitivity adjustable, large operating distance

Service voltage	10 … 36 V DC
No-load current (max.)	25 mA
Insulation voltage endurance	1000 V
Housing dimensions	30 x 30 x 15 mm
Housing length	30 mm
Housing height	30 mm
Housing width	15 mm
Housing material	Plastic (PBT)
Material	Glass (Window)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Diffuse sensor with background suppression
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 200 mA, NC
Voltage drop (max.)	2 V
Light source	LED
Color	Red
Wavelength	660 nm
Modulation	Clocked
Background suppression	Yes
Ambient light immunity	10 kLx
Switching distance	adjustable
Range	200 mm
Standardized measuring plate	100 x 100 mm (white)
Switching hysteresis (max.)	5 %
Sensitivity adjustment	Potentiometer (12-turn)
Switching frequency	1000 Hz
Response time	0.50 ms
Release time	0.50 ms
Ambient temperature during operation	-25 … +55 °C
Temperature drift	0.3 %/K
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
