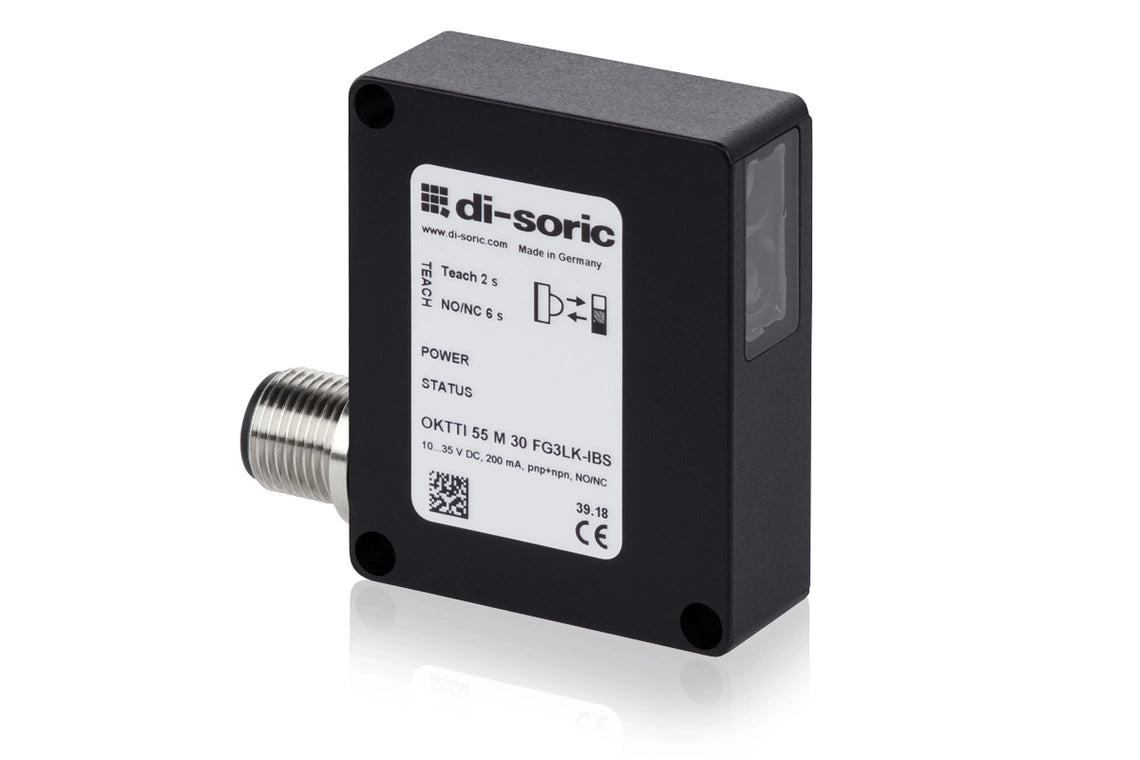

DI-Soric OKTTI 55 M 30 FG3LK-IBS Contrast sensor OK-50

These contract sensors have a robust metallic housing in rectangular design with a high protection class. The sensors work with white-light (LED) and detect even the finest of contrasts. Their sensitivity can be adjusted in an easy and user-friendly manner with an auto-teach button.

• Contrast scanner with high resolution for detecting print marks
• Auto-teach key / remote teach option / lock function
• Auto-teach during a running process
• LED indicator for the teach procedure
• Robust metal housing

Service voltage	10 … 35 V DC
No-load current (max.)	40 mA
Insulation voltage endurance	500 V
Housing dimensions	50 x 40 x 15 mm
Housing length	40 mm
Housing height	50 mm
Housing width	15 mm
Housing material	Die-cast zinc (Black, painted)
Material window / optics	Polycarbonate
Protection class	III, operation on protective low voltage
Design	Cuboid design
Switching output	Push-pull, 200 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	LED
Color	White
Modulation	Clocked
Light spot size	Ø 3 mm
Ambient light immunity	20 kLx
Switching distance	27 … 33 mm
Resolution	Ø 0.7 mm
Switching hysteresis (max.)	0.01 mm
Sensitivity adjustment	Teach button, Remote teach
Switching frequency	3000 Hz
Ambient temperature during operation	-10 … +60 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
Connection cable	VK …
