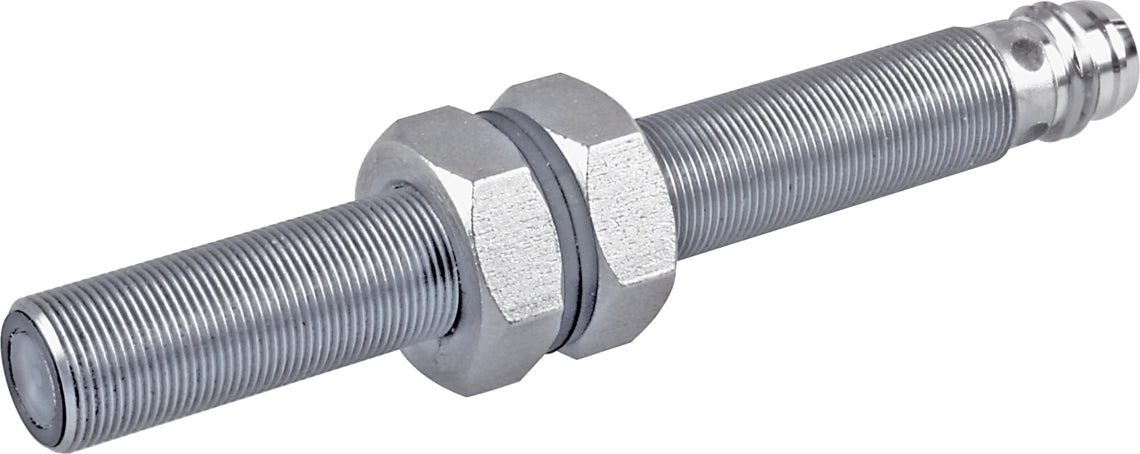

DI-Soric OLE 08 V 2000 P2K-TSSL Laser through-beam sensor O-M8

The compact laser light sensors are used for the detection of small parts and are designed for the safe laser class 1. This avoids injuries to the human eye.

• Compact design
• High switching accuracy
• High switching frequency
• Robust metal housing
• High protection type

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Thread	M8 x 0.5
Housing length	70 mm
Housing material	Stainless steel
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor
Evaluation	digital
Design	Thread
Consisting of	Receiver
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2.5 V
Light source	Laser
Ambient light immunity	5 kLx
Range	0 … 2000 mm
Resolution	Ø 1.0 mm
Switching hysteresis (max.)	0.1 mm
Reproducibility	< 0.1 mm
Sensitivity adjustment	no setting elements
Switching frequency	2000 Hz
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
