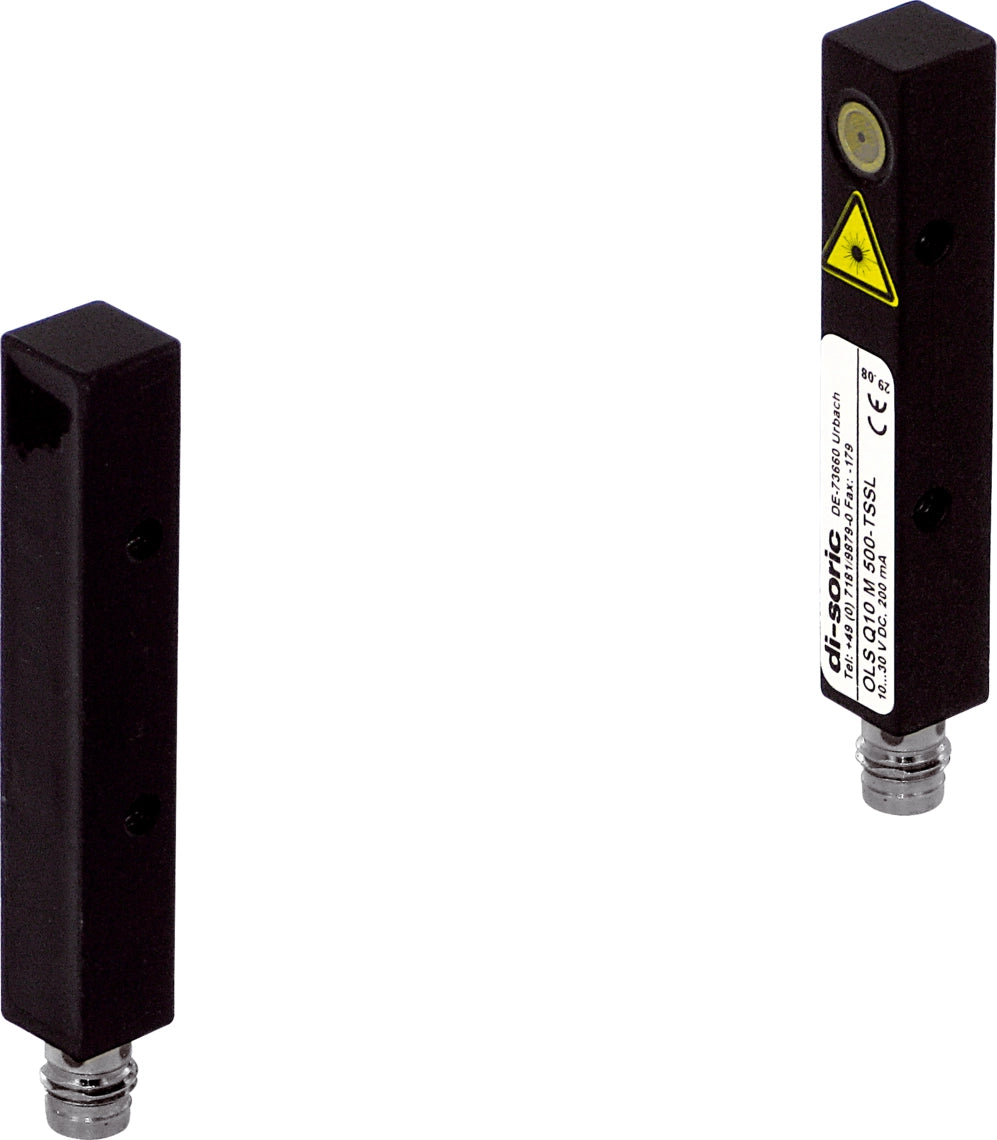

DI-Soric OLE Q10 M 2000 P1K-TSSL Laser through-beam sensor O-Q10

The devices in O-Q10 Miniature series are the first choice for applications that require compact laser through-beam sensors for small parts detection. These robust devices with a metallic housing and metal plug conform to the safe laser protection class 1.

• Compact design
• High resolution, switching accuracy, switching frequency
• Robust metal housing

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing dimensions	60 x 10 x 10 mm
Housing length	10 mm
Housing height	60 mm
Housing width	10 mm
Housing material	Die-cast zinc (Black, painted)
Material	Glass (Window)
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor
Evaluation	digital
Design	Cuboid design
Consisting of	Receiver
Switching output	pnp, 200 mA, NC
Voltage drop (max.)	2.5 V
Light source	Laser
Ambient light immunity	5 kLx
Range	500 … 2000 mm
Resolution	Ø 0.5 mm
Switching hysteresis (max.)	0.1 mm
Reproducibility	< 0.1 mm
Sensitivity adjustment	no setting elements
Switching frequency	2000 Hz
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
