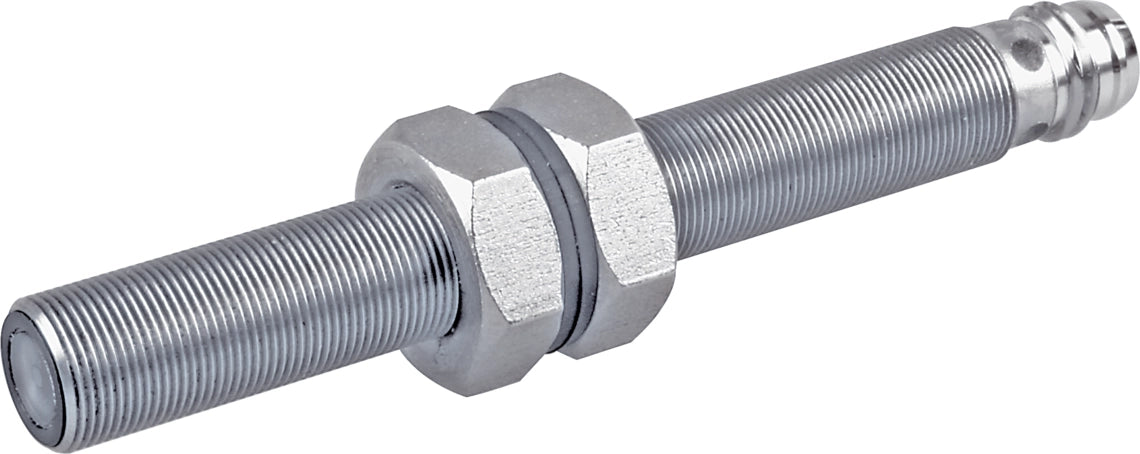

DI-Soric OLS 08 V 2000-TSSL Laser through-beam sensor O-M8

The compact laser light sensors are used for the detection of small parts and are designed for the safe laser class 1. This avoids injuries to the human eye.

• Compact design
• Collimated red-light laser
• Visible laser spot
• Robust metal housing
• High protection type

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Thread	M8 x 0.5
Housing length	70 mm
Housing material	Stainless steel
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor
Evaluation	digital
Design	Thread
Consisting of	Transmitter
Voltage drop (max.)	2.5 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 1.2 mW t = 6 µs)
Modulation	Clocked
Range	0 … 2000 mm
Sensitivity adjustment	no setting elements
Switching frequency	2000 Hz
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
