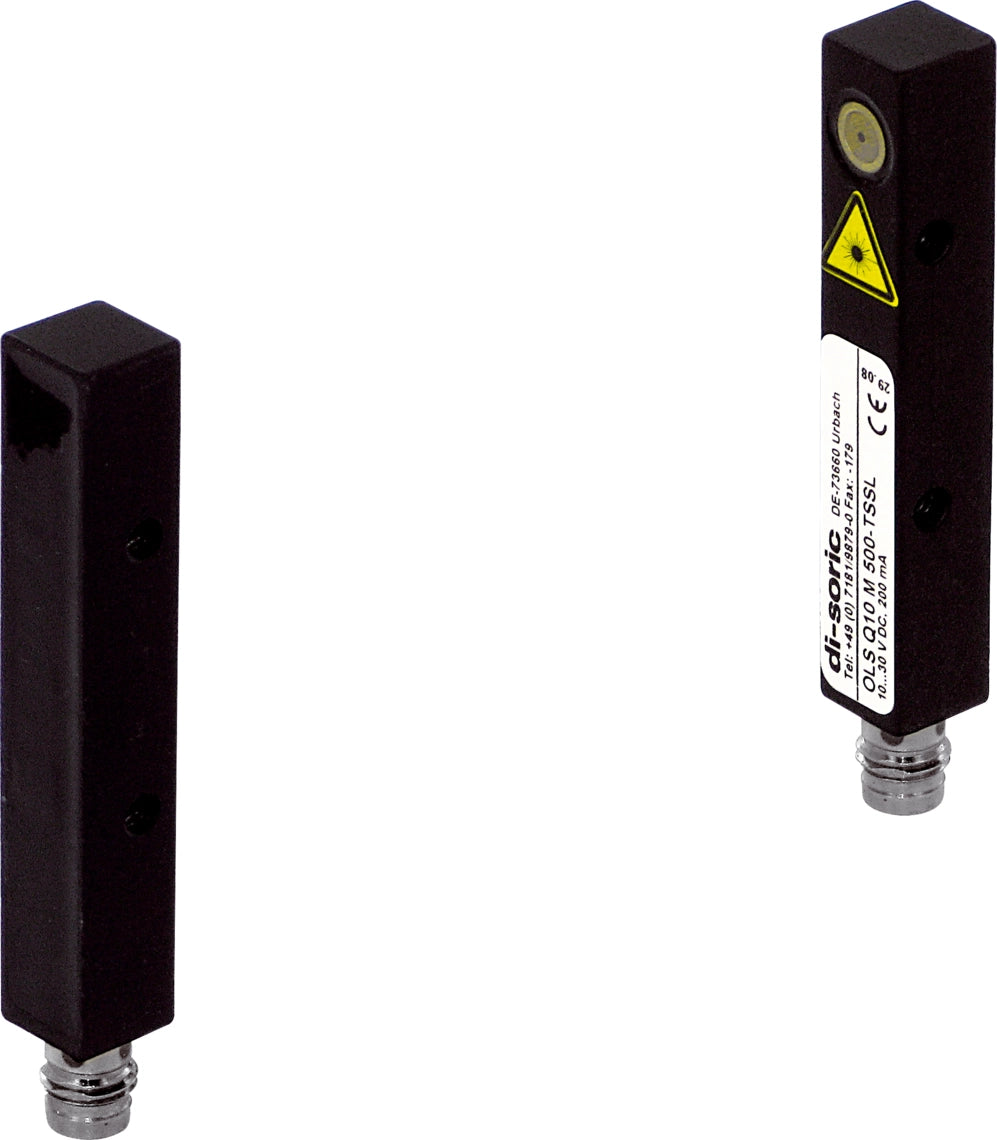

DI-Soric OLS Q10 M 500-TSSL, Laser-One-way light barrier O-Q10, P\n: 202934

The devices in O-Q10 Miniature series are the first choice for applications that require compact laser through-beam sensors for small parts detection. These robust devices with a metallic housing and metal plug conform to the safe laser protection class 1.

• Collimated red-light laser
• Visible laser spot
• Compact design
• Robust metal housing

Service voltage	10 … 35 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	500 V
Housing dimensions	60 x 10 x 10 mm
Housing length	10 mm
Housing height	60 mm
Housing width	10 mm
Housing material	Die-cast zinc (Black, painted)
Material	Glass (Window)
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor
Evaluation	digital
Design	Cuboid design
Consisting of	Transmitter
Voltage drop (max.)	2.5 V
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm (Pp < 1.1 mW t = 6 µs)
Modulation	Clocked
Laser beam divergence	2 mrad
Laser direction error	< 10 mrad
Range	0 … 500 mm
Sensitivity adjustment	no setting elements
Switching frequency	2000 Hz
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
