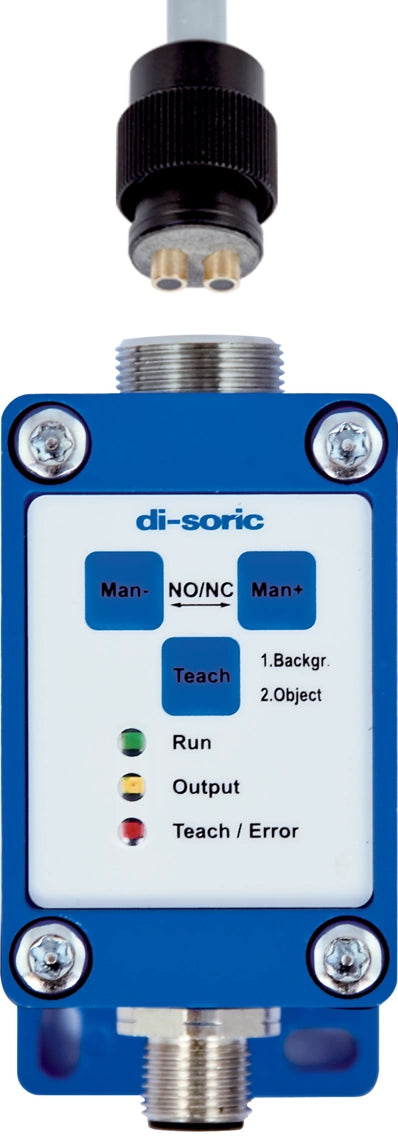

DI-Soric OLVTI 40 P3K-IBS Glass fiber-optic amplifier OLV

Due to their stable metallic housing and the high protection class, the amplifiers in the OLV series are ideal for challenging individual applications. The devices are operated through simple teach-in.

• Sensitivity adjustable via external teach input or via buttons
• Metal casing
• Infrared light
• High switching frequency
• Light/dark switching
• Metal connector
• High protection type

Service voltage	10 … 35 V DC
No-load current (max.)	45 mA
Insulation voltage endurance	500 V
Housing length	74.5 mm
Housing height	42 mm
Housing width	40 mm
Housing material	Die-cast zinc (painted)
Protection class	III, operation on protective low voltage
Amplifier for	Glass fiber optics M18
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 200 mA, NO/NC, programmable
Voltage drop (max.)	2.8 V
Light source	LED
Color	Infrared
Wavelength	880 nm
Modulation	Clocked
Ambient light immunity	50 kLx
Range	80 mm
Switching hysteresis (max.)	12 %
Reproducibility	< 2 %
Operating elements	3 (Teach, Man-, Man+)
Sensitivity adjustment	Teach button, Remote teach
Display	LED green - Run, yellow - Output, Red - Teach / Error
Switching frequency	1500 Hz
Ambient temperature during operation	-10 … +60 °C
Temperature drift	0.3 %/K
Protection type	IP 65
Connection	Connector, M12, 4-pin
