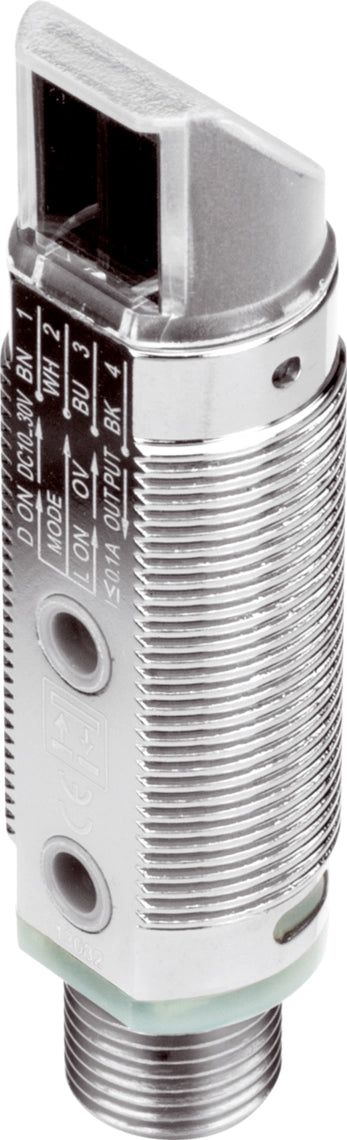

DI-Soric OR 18-1 FMR 3600 N3-B4 Retroreflective sensor O-M18 Basic

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retro reflective sensor. Polarization filters also allow the detection of reflecting objects. Retro reflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Angled optics
• Universal mounting options
• Low installation depth
• Sensitivity is adjustable
• LED switching status display
• Metal casing

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Thread	M18 x 1
Housing length	67.5 mm
Housing material	Metal
Material	PMMA (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Thread, Angled optics
Scope of delivery	Sensor, Reflector R55
Switching output	npn, 100 mA, NO/NC
Voltage drop (max.)	2 V
Light source	LED
Color	Red
Wavelength	660 nm
Modulation	Clocked
Ambient light immunity	3 kLx Clocked light, 10 kLx Sunlight
Range	4000 mm
Referring reflector	100 x 100 mm, R 100 x 100
Sensitivity adjustment	Potentiometer
Switching frequency	1000 Hz
Response time	0.50 ms
Release time	0.50 ms
Ambient temperature during operation	-25 … +55 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
