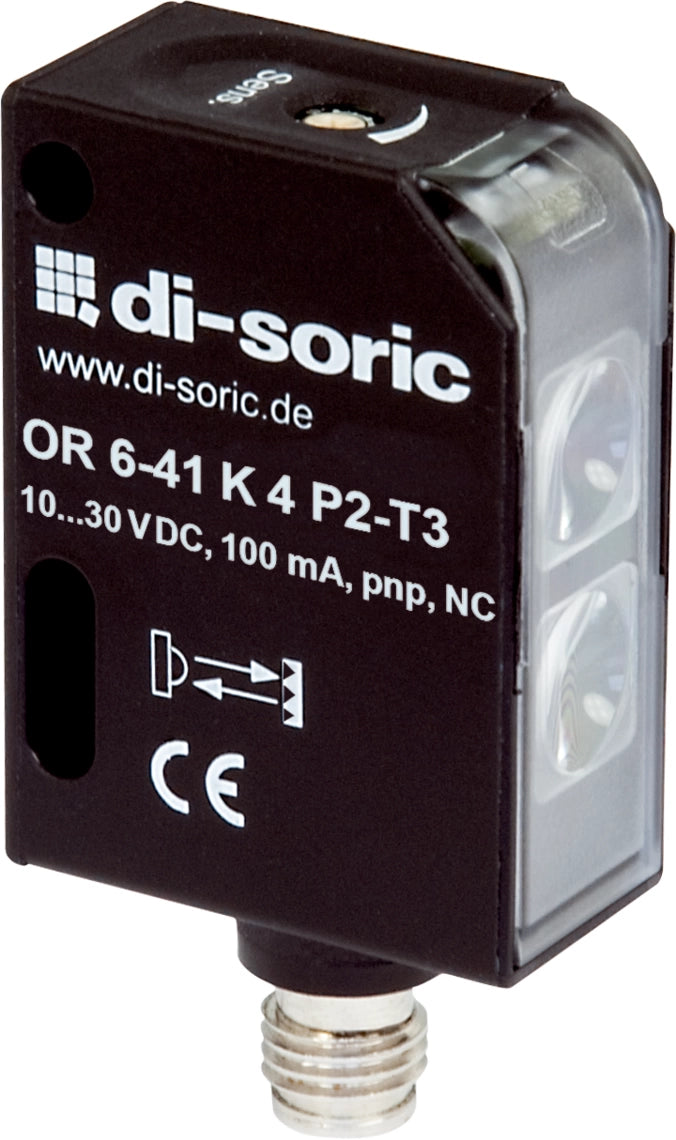

DI-Soric OR 6-41 K 4 N2-T3 Retroreflective sensor O-40 Standard

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retro reflective sensor. Polarization filters also allow the detection of reflecting objects. Retro reflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Long range
• Visible red light with small light spot
• Polarization filter
• Sensitivity is adjustable
• Compact design
• Universal mounting
• LED switching status display

Service voltage	10 … 30 V DC
No-load current (max.)	25 mA
Housing dimensions	38 x 27 x 15 mm
Housing length	27 mm
Housing height	38 mm
Housing width	15 mm
Housing material	Plastic
Material window / optics	Plastic
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Cuboid design
Switching output	npn, 100 mA, NO
Light source	LED
Color	Red
Wavelength	630 … 670 nm
Modulation	Clocked
Ambient light immunity	5 kLx
Switching distance	400 … 4000 mm (R55), 900 … 9000 mm (R 84), 1000 … 10000 mm (R 100x100)
Range	400 … 10000 mm
Referring reflector	Reflector R55 included
Sensitivity adjustment	Potentiometer
Switching frequency	500 Hz
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
