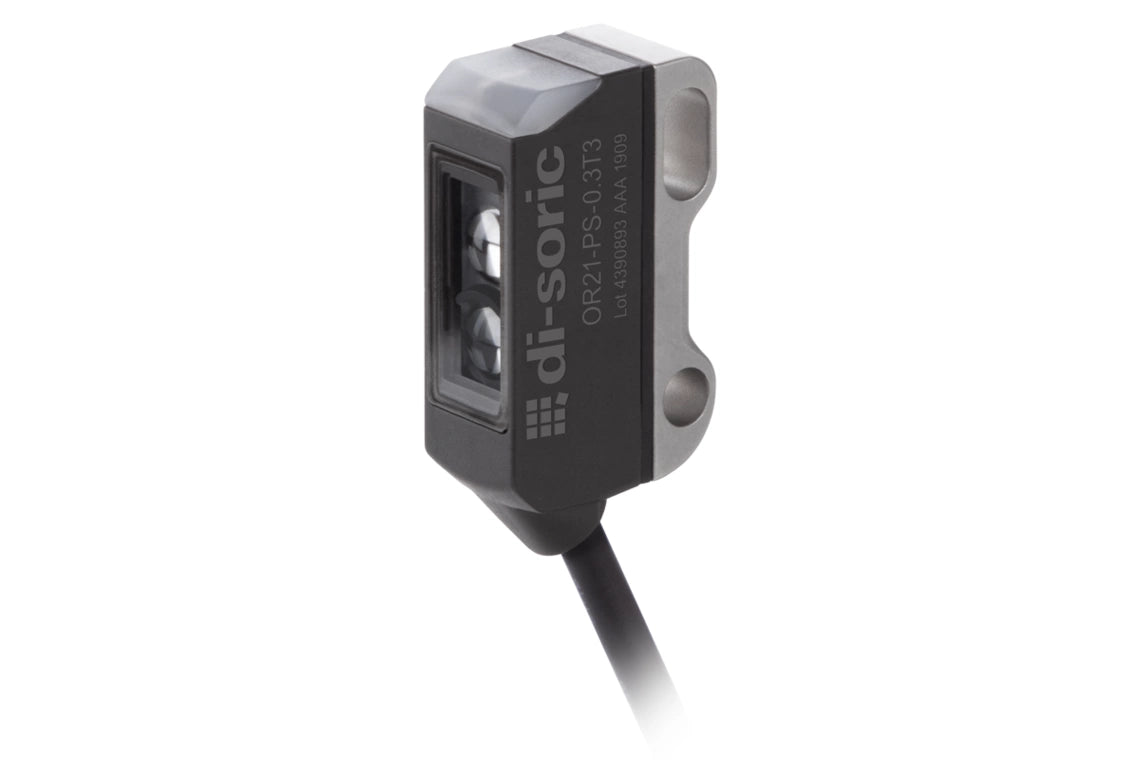

DI-Soric OR21-PS-0.3T3, Retroreflective light barrier O-21, P\n: 212987

The transmitter and receiver are in one housing. The emitted light is reflected back by a reflector and evaluated in the retroreflective sensor. Polarization filters also allow the detection of reflecting objects. Retroreflective sensors make long ranges possible, with simple assembly and a high degree of system availability.

• Miniature design
• Mounting element made of metal
• High switching frequency
• Long range
• IO-Link
• Diagnostic function reserve

Service voltage	10 … 30 V DC
No-load current (max.)	20 mA
Inverse polarity protection	Yes
Housing dimensions	28.1 x 14.4 x 8.1 mm
Housing length	14.4 mm
Housing height	28.1 mm
Housing width	8.1 mm
Housing material	Stainless steel / Plastic
Material of cable	PVC
Material	Plastic (Window / optics)
Weight	21 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Retroreflective sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 100 mA, NO/NC, configurable
Voltage drop (max.)	2.5 V
Interface	IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light source	LED
Color	Red
Wavelength	633 nm
Modulation	Clocked
Light spot size	Ø 120 mm (at distance of 1800 mm)
Range	20 … 1800 mm (configurable)
Referring reflector	R 19 x 54 mm
Sensitivity adjustment	IO-Link
Display	LED green - Operation, yellow - Switching output
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 65 / IP 67
Connection	Pigtail, 0.3 m, M8, 3-pin
Connection cable	TK …
