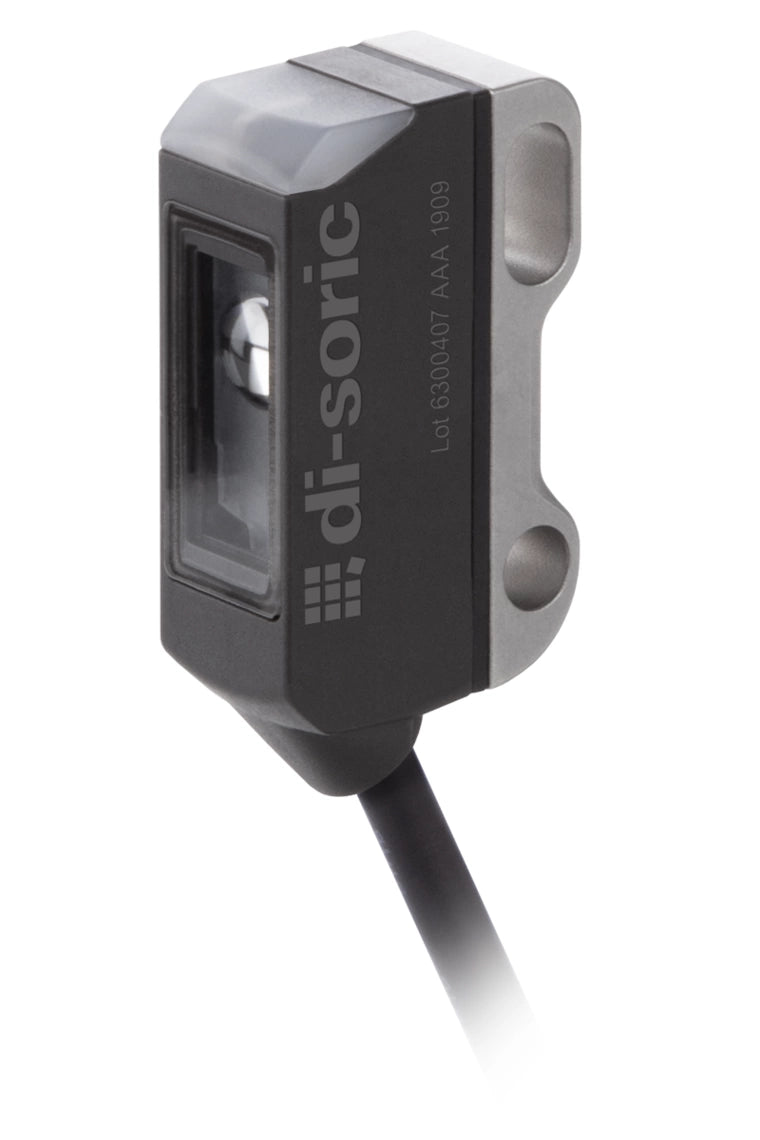

DI-Soric OS21-2C, One-way light barrier O-21, P\n: 212989

Through-beam sensors consist of transmitter and receiver, each of which are arranged in a housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.

• Miniature design
• Mounting element made of metal
• Long range

Service voltage	10 … 30 V DC
No-load current (max.)	15 mA
Inverse polarity protection	Yes
Housing dimensions	28.1 x 14.4 x 8.1 mm
Housing length	14.4 mm
Housing height	28.1 mm
Housing width	8.1 mm
Housing material	Stainless steel / Plastic
Material of cable	PVC
Material	Plastic (Window / optics)
Weight	37 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Through-beam sensor
Evaluation	digital
Design	Cuboid design
Consisting of	Transmitter
Light source	LED
Color	Red
Wavelength	633 nm
Modulation	Clocked
Light spot size	Ø 200 mm (at distance of 3000 mm)
Range	3000 mm
Sensitivity adjustment	no setting elements
Display	LED green - Status
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 65 / IP 67
Connection	Cable, 2.0 m, 3-pin
