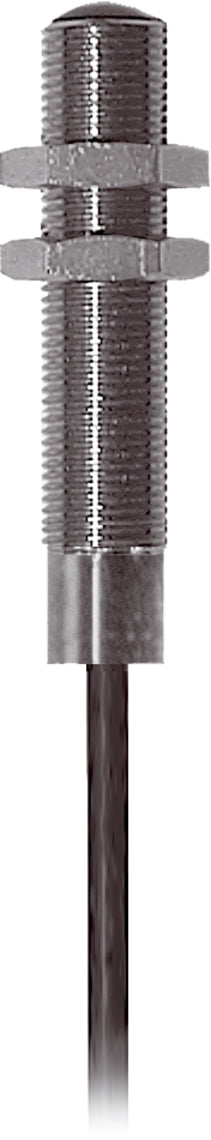

DI-Soric OSP 12 VHFL-5M High performance light barrier OP-M12

The threaded M12 model consists of a transmitter and receiver in a compact construction and simple threaded mounting. Through the robust stainless steel housing, the systems are insensitive to vibrations and shaking and therefore do not have to be continually adjusted.

• Long range
• Transmit power with external resistance adjustable
• High function reserve
• Extremely dirt-resistant
• Easy adjustment
• Different designs to be combined
• High protection type
• Compact design

Service voltage	10 … 35 V DC
No-load current (max.)	55 mA
Thread	M12 x 1
Housing length	60 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304)
Material of cable	PVC
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor, transmitter
Evaluation	digital
Design	Thread
Characteristics	High transmit power and dirt penetration
Consisting of	Transmitter
Light source	LED
Color	Infrared
Wavelength	870 nm
Modulation	Clocked
Deflection angle FWHM	6°
Range	0 … 50000 mm (dependent on the receiver)
Sensitivity adjustment	no setting elements
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation	-20 … +60 °C
Protection type	IP 67 / IP 68 / IP 69K
Connection	Cable, 5.0 m
