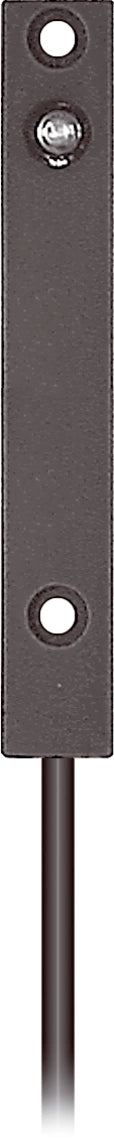

DI-Soric OSPQ 12 MLFL-5M High performance light barrier OP-Q12

The rectangular M12 model consists of a transmitter and receiver in a compact construction and simple threaded mounting. Through their robust stainless steel housing, the systems are insensitive to vibrations and shaking and therefore do not have to be continually adjusted.

• Range up to 20 m
• Transmit power with external resistance adjustable
• High function reserve
• Extremely dirt-resistant
• Easy adjustment
• Different designs to be combined
• High protection type
• Compact design

Service voltage	10 … 35 V DC
No-load current (max.)	55 mA
Housing dimensions	82 x 12 x 12 mm
Housing length	82 mm
Housing height	12 mm
Housing width	12 mm
Housing material	Aluminum (Anodized)
Material of cable	PVC
Protection class	III, operation on protective low voltage
Operating principle	Through-beam sensor, transmitter
Evaluation	digital
Design	Cuboid design
Characteristics	High transmit power and dirt penetration
Consisting of	Transmitter
Light source	LED
Color	Infrared
Wavelength	870 nm
Modulation	Clocked
Deflection angle FWHM	15°
Range	0 … 20000 mm (dependent on the receiver)
Sensitivity adjustment	no setting elements
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation	-20 … +60 °C
Protection type	IP 67
Connection	Cable, 5.0 m
