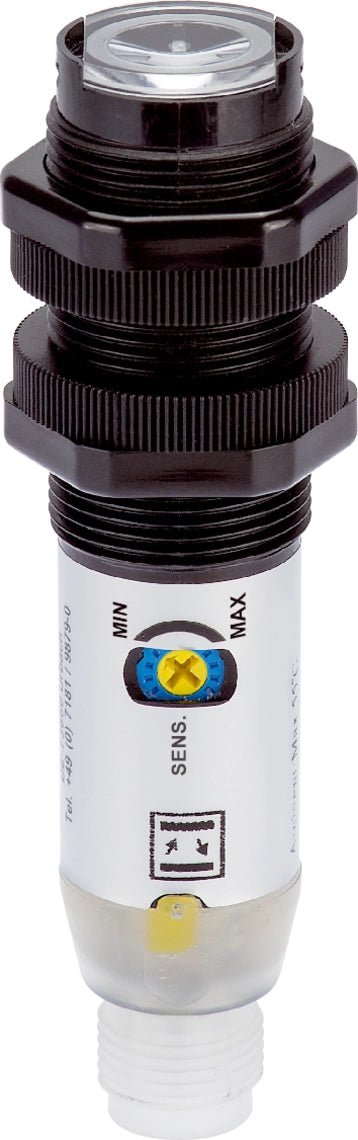

DI-Soric OT 18-1 K 30 P3-B4 Diffuse reflective sensor O-M18 Basic

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• High operational safety, dark black objects are detected
• Red light
• Sensitivity is adjustable
• LED switching status display
• Robust plastic housing
• High protection type

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	1000 V
Thread	M18 x 1
Housing length	80 mm
Housing material	Plastic
Material	PMMA (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Thread
Switching output	pnp, 100 mA, NO/NC, programmable
Light source	LED
Color	Red
Wavelength	635 nm
Background suppression	Yes
Ambient light immunity	10 kLx
Range	10 … 30 mm (adjustable)
Standardized measuring plate	200 x 200 mm (white)
Sensitivity adjustment	Potentiometer
Switching frequency	300 Hz
Response time	2.0 ms
Release time	2.0 ms
Ambient temperature during operation	-25 … +55 °C
Protection type	IP 66
Connection	Connector, M12, 4-pin
