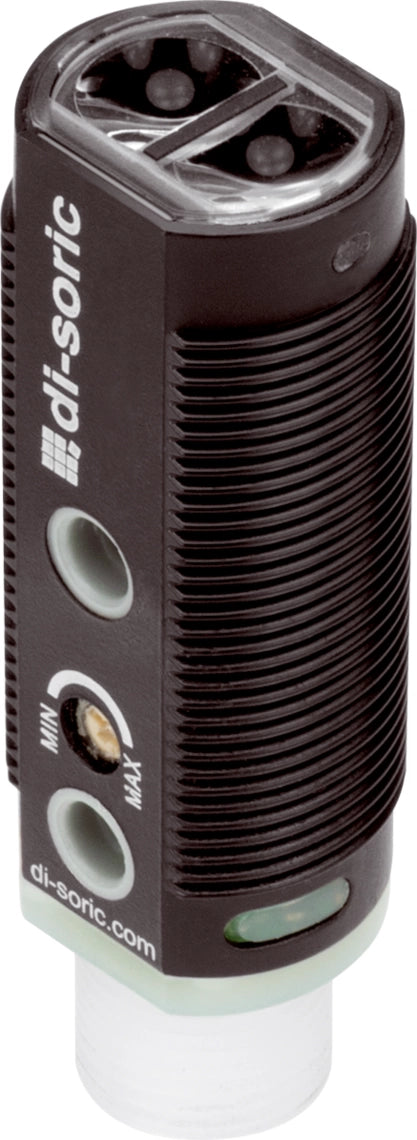

DI-Soric OT 18 FK 400 N3-B4 Diffuse reflective sensor O-M18 Basic

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• Universal mounting options
• Low installation depth
• Sensitivity is adjustable
• LED switching status display
• Plastic housing

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Thread	M18 x 1
Housing length	54.5 mm
Housing material	Plastic (ABS)
Material	PMMA (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Thread
Switching output	npn, 100 mA, NO/NC
Light source	LED
Color	Infrared
Wavelength	880 nm
Modulation	Clocked
Ambient light immunity	3 kLx Clocked light, 10 kLx Sunlight
Range	400 mm
Standardized measuring plate	200 x 200 mm
Sensitivity adjustment	Potentiometer
Switching frequency	1000 Hz
Response time	0.50 ms
Release time	0.50 ms
Ambient temperature during operation	-25 … +55 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin
