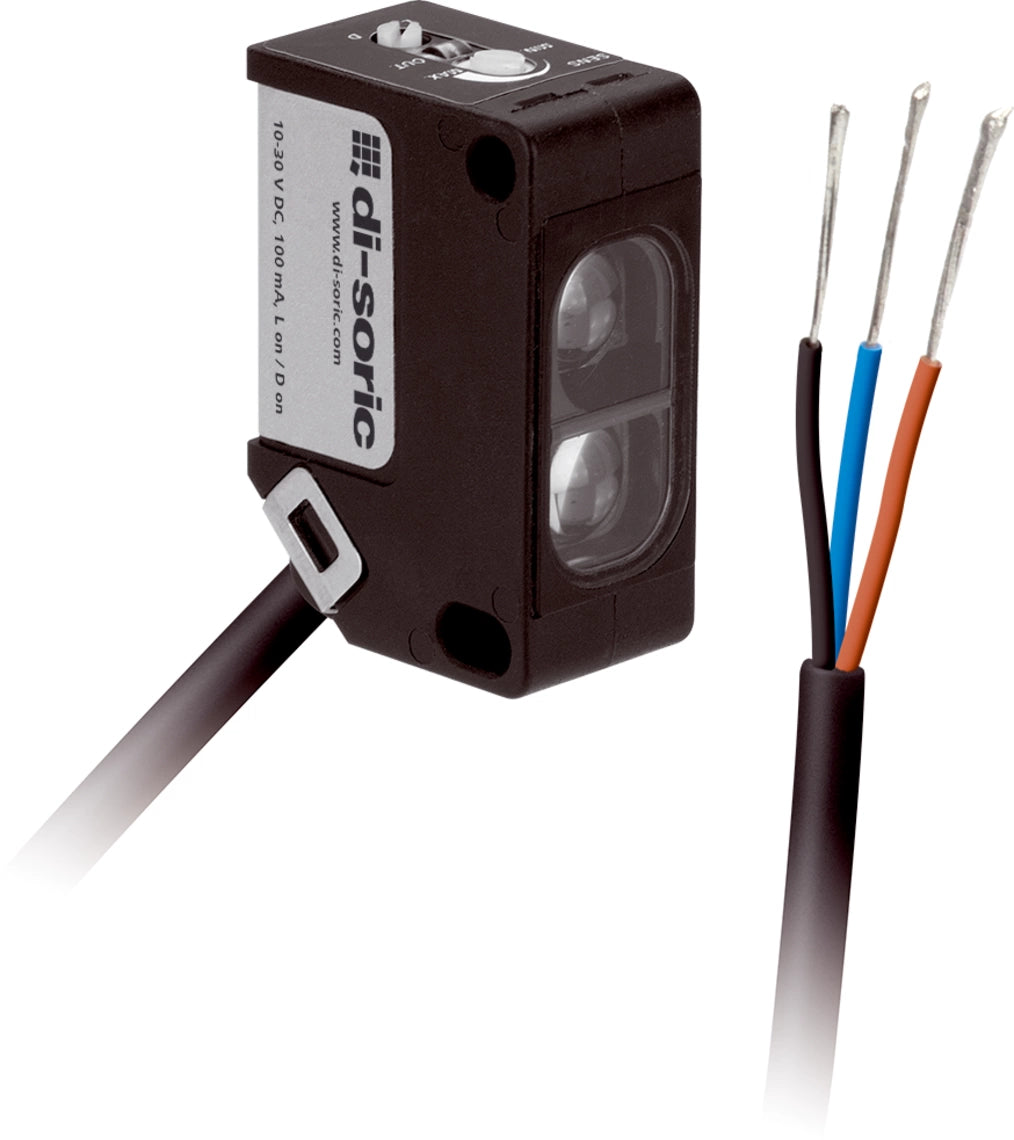

DI-Soric OT 31 K 100 P3-3, Diffuse reflection sensor energetic O-30, P\n: 209238

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• Compact design
• Red light
• Sensitivity is adjustable
• Switch for light/dark switching
• Fully molded electronic circuitry, vibration-resistant
• Standardized hole spacing 25.4 mm

Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Insulation voltage endurance	1000 V
Housing dimensions	31.2 x 21 x 12.8 mm
Housing length	21 mm
Housing height	31.2 mm
Housing width	12.8 mm
Housing material	Plastic (PA, 6.6)
Material	PMMA (Window)
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 100 mA, NO/NC, switchable
Voltage drop (max.)	2 V
Light source	LED
Color	Red
Wavelength	630 nm
Modulation	Clocked
Ambient light immunity	3 kLx Halogen light, 10 kLx Sunlight
Range	100 mm
Standardized measuring plate	200 x 200 mm (white)
Switching hysteresis (max.)	10 %
Sensitivity adjustment	Potentiometer
Switching frequency	1000 Hz
Response time	0.50 ms
Release time	0.50 ms
Ambient temperature during operation	-25 … +70 °C
Temperature drift	0.1 mm/K
Protection type	IP 67
Connection	Cable, 2.0 m, 3-pin (flying leads)
