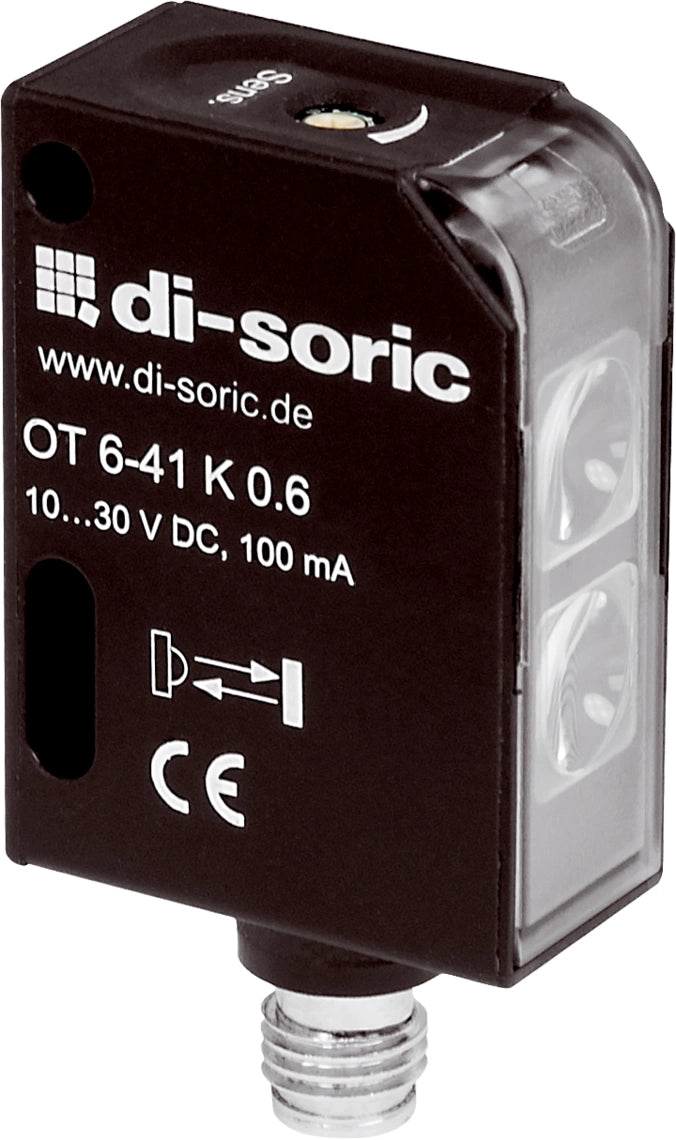

DI-Soric OT 6-41 K 0.6 P2-T3 Diffuse reflective sensor O-40 Standard

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• High scanning range
• Sensitivity is adjustable
• Compact design
• Universal mounting
• LED switching status display

Service voltage	10 … 30 V DC
No-load current (max.)	25 mA
Housing dimensions	38 x 27 x 15 mm
Housing length	27 mm
Housing height	38 mm
Housing width	15 mm
Housing material	Plastic
Protection class	III, operation on protective low voltage
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Cuboid design
Switching output	pnp, 100 mA, NC
Light source	LED
Color	Red
Wavelength	630 … 670 nm
Modulation	Clocked
Ambient light immunity	5 kLx
Range	600 mm
Standardized measuring plate	200 x 200 mm (white)
Sensitivity adjustment	Potentiometer
Switching frequency	500 Hz
Ambient temperature during operation	-25 … +60 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection cable	TK …
