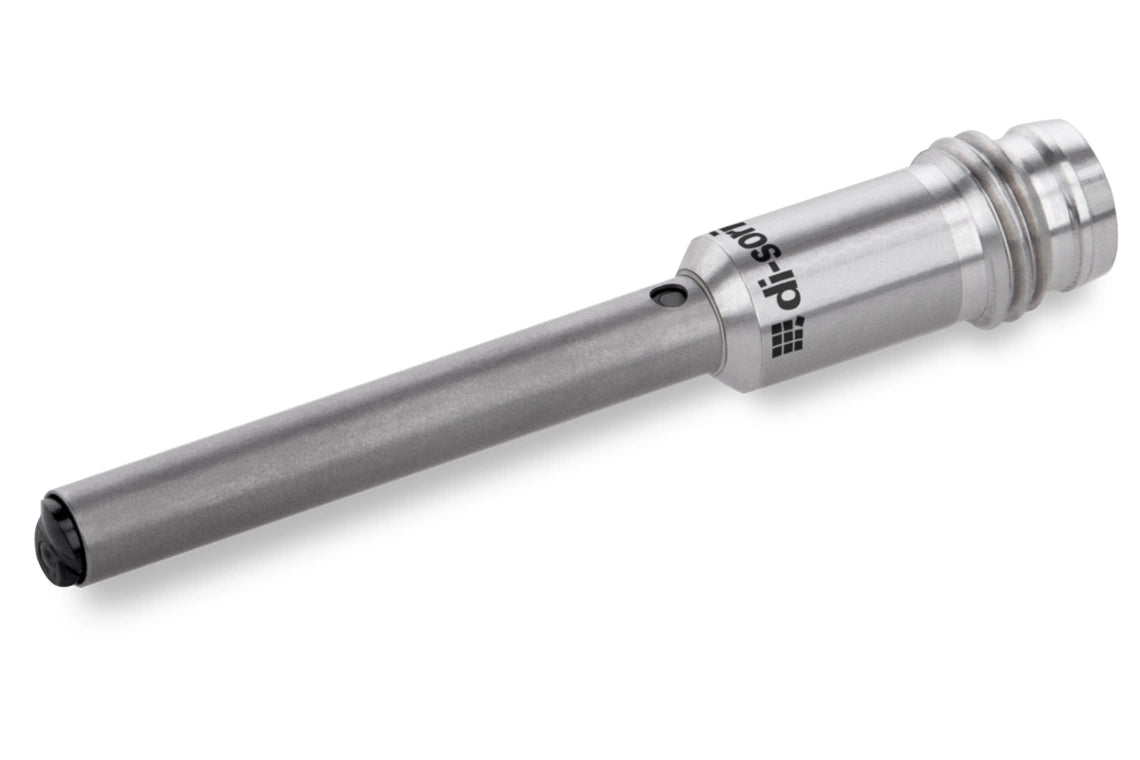

DI-Soric OTD04-50PS-T3 Diffuse reflective sensor O-D4

Energetic diffuse reflective sensors are economical sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the energy of the reflected sensor light from objects. The working distance and the brightness of object and background influence object detection. Bright objects against a dark background can be detected well with energetic diffuse reflective sensors.

• Extremely small design
• Red light
• Scanning range preset
• Stainless steel housing
• Can be installed countersunk
• Large temperature range

Service voltage	10 … 30 V DC
No-load current (max.)	15 mA
Inverse polarity protection	Yes
Diameter	Ø 4.0 mm (Diameter)
Housing length	45.8 mm
Housing material	Stainless steel (V4A)
Material	Plastic (Window / optics)
Weight	4 g
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	Retroreflective diffuse sensor
Evaluation	digital
Design	Cylinder
Switching output	pnp, 100 mA, NO
Voltage drop (max.)	2 V
Light source	LED
Color	Red
Wavelength	630 nm
Light spot size	18 x 20 mm (at 50 mm distance)
Range	0 … 50 mm
Scanning range	50 mm
Standardized measuring plate	200 x 200 mm (white)
Sensitivity adjustment	no setting elements
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +65 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
