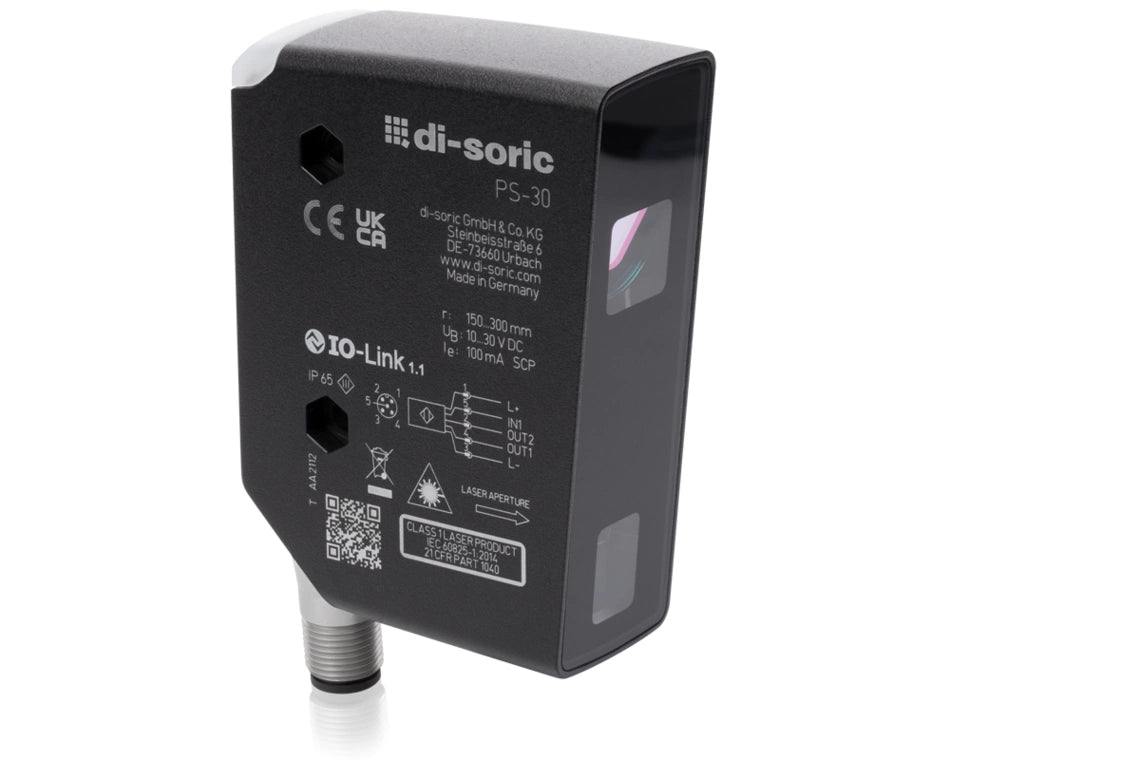

DI-Soric PS30-05LL-500-500-IBS Profile sensor PS-30

The optoelectronic PS-30 Profile Sensor is ready to use in just a few steps and captures profiles of various objects per laser line scan. Up to 10 target profiles simplify the inspection and measurement of changing objects on the same production line. The PS-30 checks not only for the presence of an object, it also determines whether the actually intended component is used and correctly attached. Improve your product quality and increase your production efficiency with the PS-30 Profile Sensor.

• Creates height profiles for checking correct and complete assembly
• Quick commissioning without software
• Distance- and color-independent measurement for high tolerance in object positioning
• Ambient light immunity - no shielding or external illumination necessary
• IO-Link
• Visualize profiles and output measured values, e.g. movement of an object for simplified error analysis

Service voltage	10 … 30 V DC
Power consumption	< 200 mA (10 V)
Inverse polarity protection	Yes
Short-circuit protection	Yes, clocked
Overload proof	Yes
Housing dimensions	88 x 65 x 28.5 mm
Housing length	65 mm
Housing height	88 mm
Housing width	28.5 mm
Housing material	Die-cast zinc (Black, PPSU; ABS; PMMA; PBT / PC; EPDM)
Material	PMMA (Window / optics)
Weight	535 g
Protection class	III, operation on protective low voltage
EMC directives	EN 60947-5-2
Model	PS 30
Profiles	Smart Sensor: Process Data Variable, Device Identification, Device Diagnosis
Storable profiles	10
Number of inputs/outputs	1 (digital) / 2 (digital)
Switching output	pnp/npn, 100 mA, NO/NC, configurable
Interface	IO-Link V1.1, COM3 (230,4 kBd)
SDCI norm	IEC 61131-9
SIO mode	Yes
Required master port class	A
process cycle time	> 2.3 ms
Light source	Laser
Laser class	CLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
Color	Red
Wavelength	650 nm
Ambient light immunity	20 kLx
Wide measuring range (min)	45 mm (150 mm / minimum measuring distance / X axis)
Wide measuring range (max)	90 mm (300 mm / maximum measuring distance / X axis)
Resolution steel ball (smallest object size)	0.25 mm (X axis), 0.2 mm (Z axis)
Measuring distance	150 … 300 mm (Z axis)
Reproducibility	± 0.5 mm X/Z axis, background white (90 % Remission)
Sensitivity adjustment	Programming buttons
Display	Color display, LED green - Operation, yellow - Switching status
Measuring frequency	5.0 Hz
Readiness delay (max.)	2000 ms
Ambient temperature during operation	-10 … +55 °C
Protection type	IP 65
Connection	Connector, M12, 5-pin
