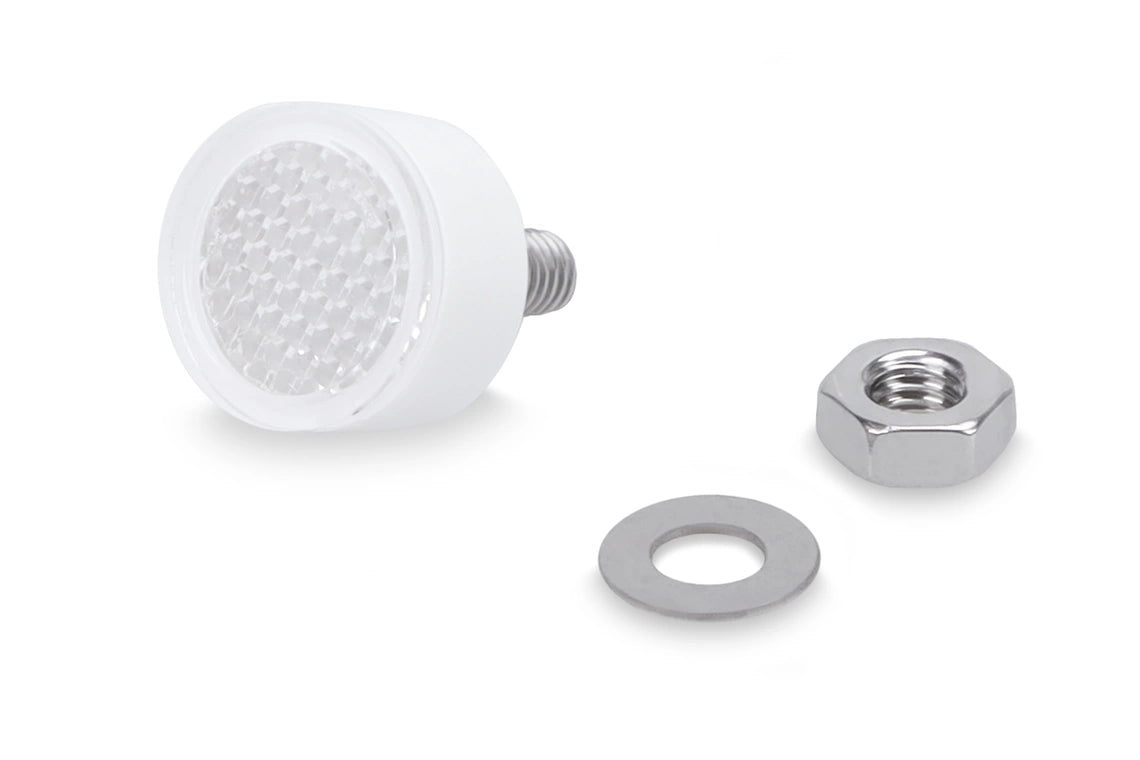

DI-Soric R 10 M3, Sensor Accessories, sku: 201598

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For infrared and red light
• Heat-resistant up to 80 °C
• Thread M3x8.4 mm
• Suitable for polarized light

Mounting	M3 x 8.4 mm
Diameter	Ø 10 mm (Diameter)
Height	5.8 mm
Housing material	Plastic
Design	round
Design	Reflector
Light source	LED
Color	Infrared and red
Ambient temperature during operation	-20 … +60 °C
