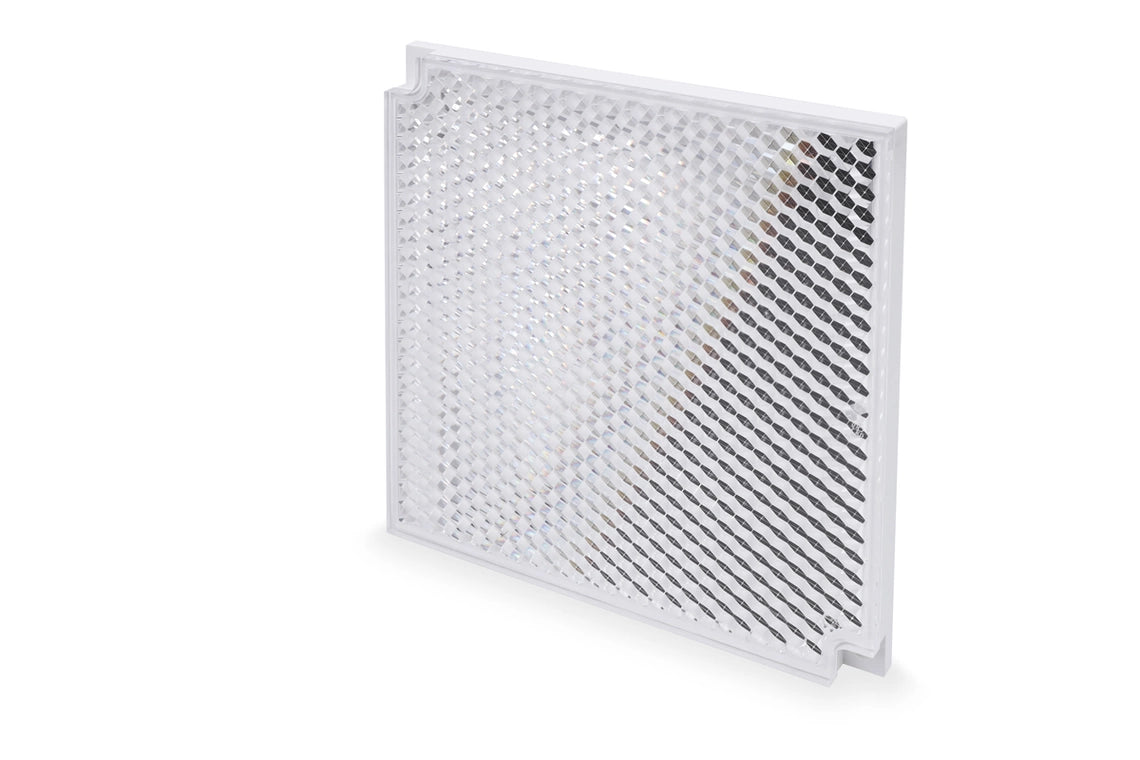

DI-Soric R 100x100, Sensor Accessories, sku: 201599

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For infrared and red light
• Heat-resistant up to 80 °C
• Hole Ø3.8 mm (2x)
• Suitable for polarized light

Mounting	2 holes
Area	100 x 100 mm
Height	9 mm
Housing length	100 mm
Housing width	100 mm
Housing material	Plastic
Design	rectangular
Design	Reflector
Light source	LED
Color	Infrared and red
Ambient temperature during operation	-20 … +60 °C
