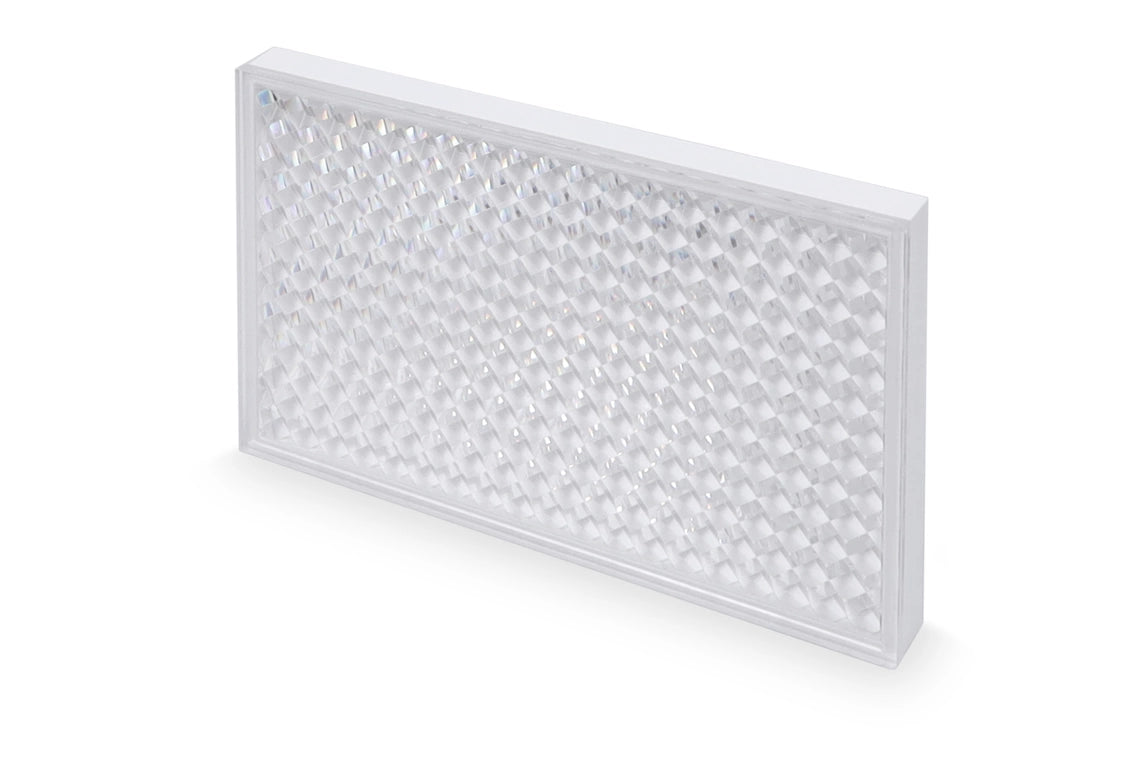

DI-Soric R 50x80, Sensor Accessories, sku: 201612

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For infrared and red light
• Heat-resistant up to 80 °C
• Adhesive
• Suitable for polarized light

Mounting	adhesive
Area	50 x 80 mm
Height	7.2 mm
Housing length	80 mm
Housing width	50 mm
Housing material	Plastic
Design	rectangular
Design	Reflector
Light source	LED
Color	Infrared and red
Ambient temperature during operation	-20 … +60 °C
