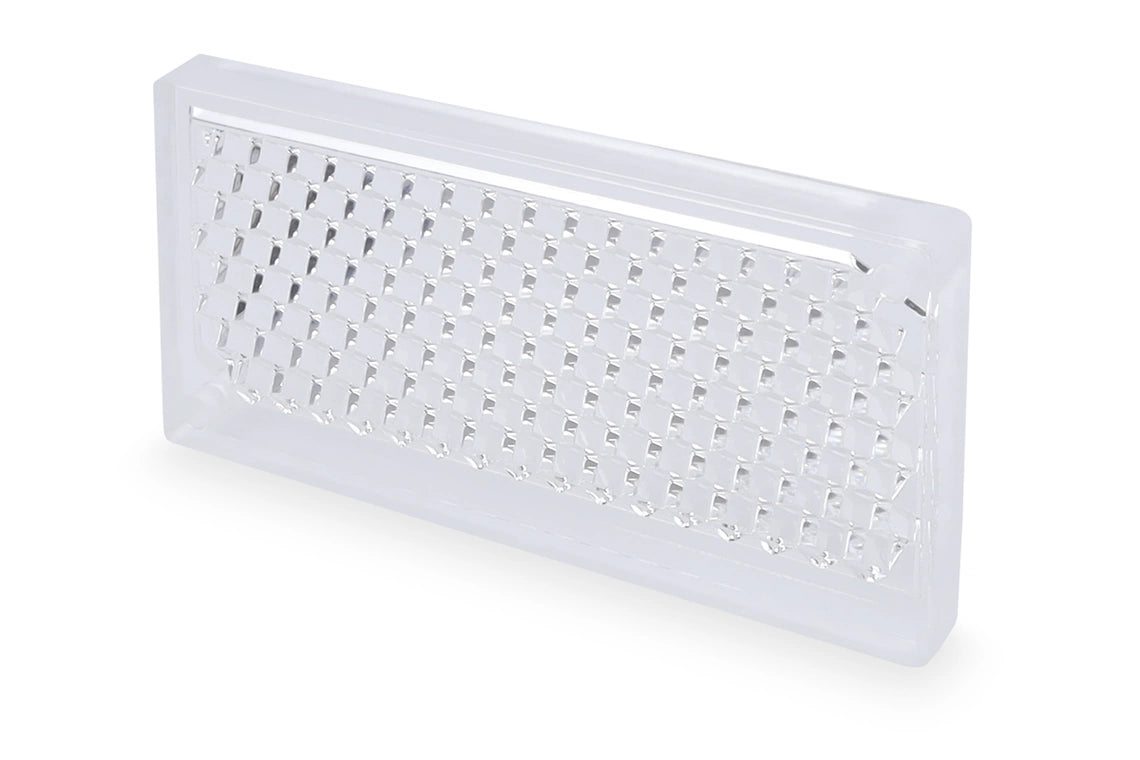

DI-Soric R 51X94/500°, Sensor Accessories, P\n: 202651

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For infrared and red light
• High-temperature resistant up to 500 °C
• Hole Ø3.3 mm (2x)
• Suitable for polarized light

Mounting	2 holes
Area	51 x 94 mm
Height	9 mm
Housing length	94 mm
Housing width	51 mm
Housing material	Plastic
Design	rectangular
Design	Reflector
Light source	LED
Color	Infrared and red
Ambient temperature during operation	+500 °C
