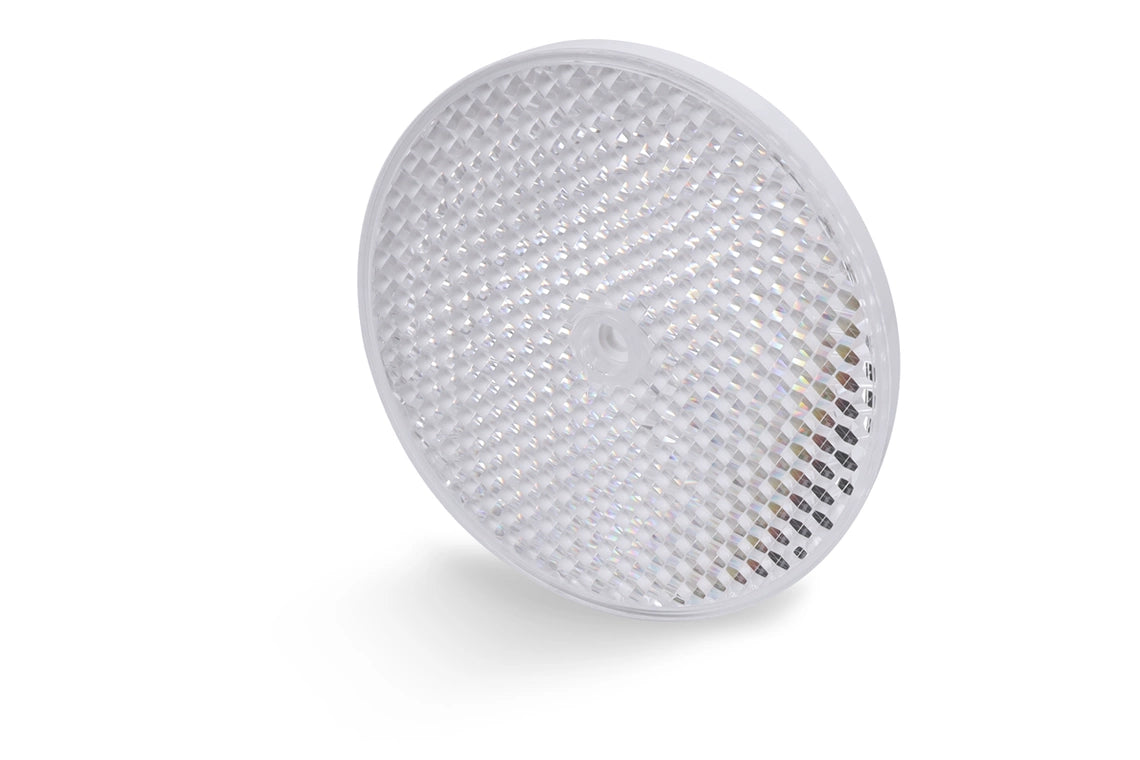

DI-Soric R 84, Sensor Accessories, sku: 201613

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For infrared and red light
• Heat-resistant up to 80 °C
• Hole Ø4.5 mm (1x)
• Suitable for polarized light

Mounting	Hole
Diameter	Ø 84 mm (Diameter)
Height	7.4 mm
Housing material	Plastic
Design	round
Design	Reflector
Light source	LED
Color	Infrared and red
Ambient temperature during operation	-20 … +60 °C
