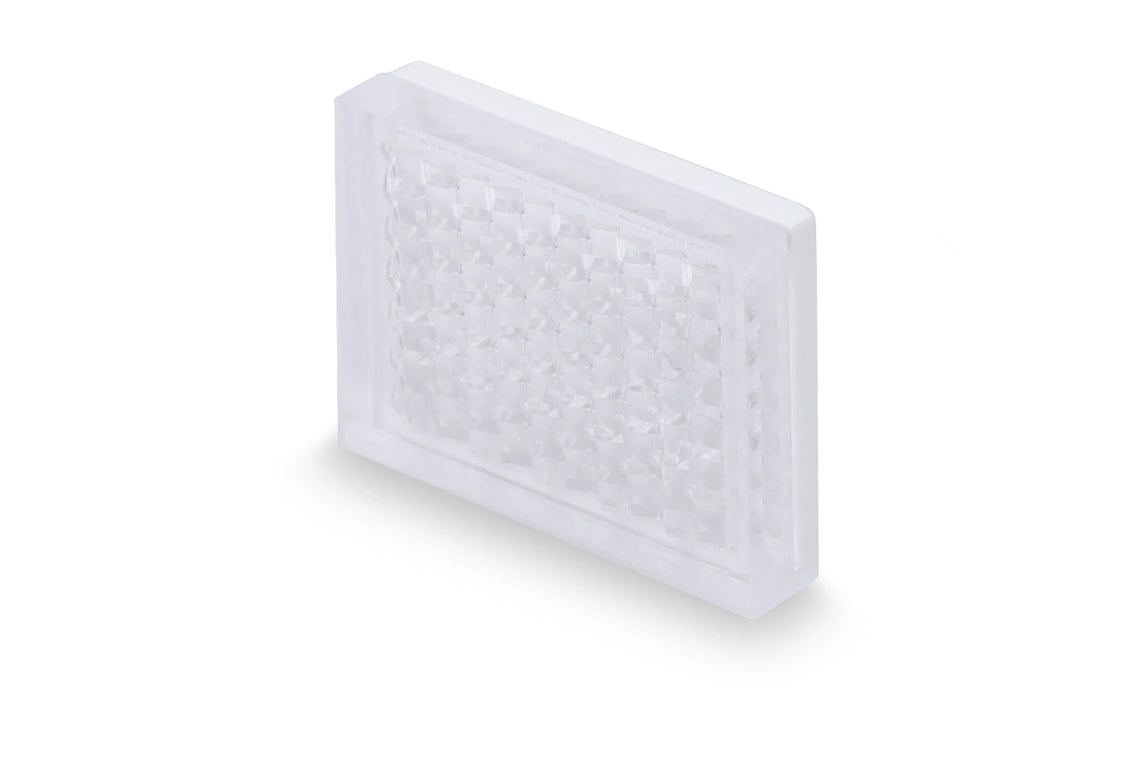

DI-Soric RL 13x17, Sensor Accessories, sku: 203569

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For laser-light
• Heat-resistant up to 60 °C
• Adhesive
• Suitable for polarized light

Mounting	adhesive
Area	12.8 x 16.8 mm
Height	4.2 mm
Housing length	16.8 mm
Housing width	12.8 mm
Design	rectangular
Design	Reflector
Light source	Laser
Ambient temperature during operation	-20 … +60 °C
