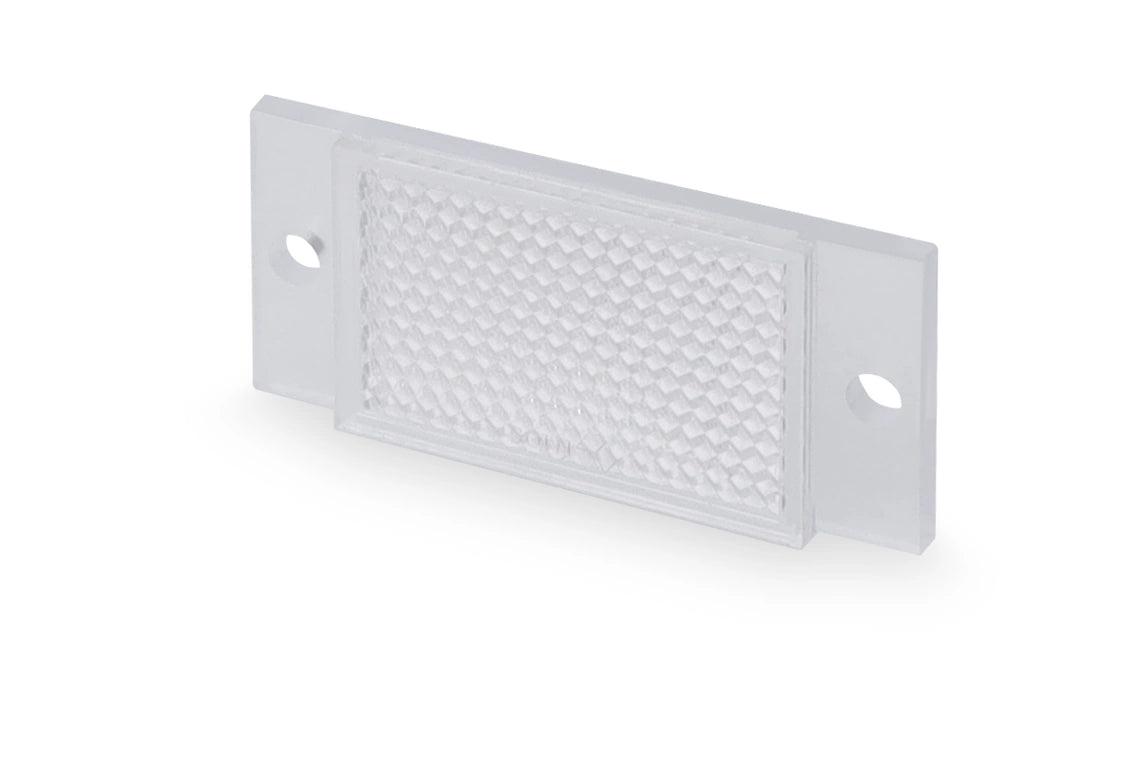

DI-Soric RL 43x20/110°, Sensor Accessories, sku: 207590

Retro reflective sensors require matching reflectors and reflective films for operation. Reflectors from di-soric are optionally available for laser or LED light sources. Various sizes and specific designs round off the catalog.

• For laser-light
• Heat-resistant up to 110 °C
• Hole Ø3.3 mm (2x)
• Suitable for polarized light

Mounting	2 holes
Area	43 x 20 mm
Height	3.5 mm
Housing length	43 mm
Housing width	20 mm
Design	rectangular
Design	Reflector
Light source	Laser
Color	Red
Ambient temperature during operation	-20 … +110 °C
